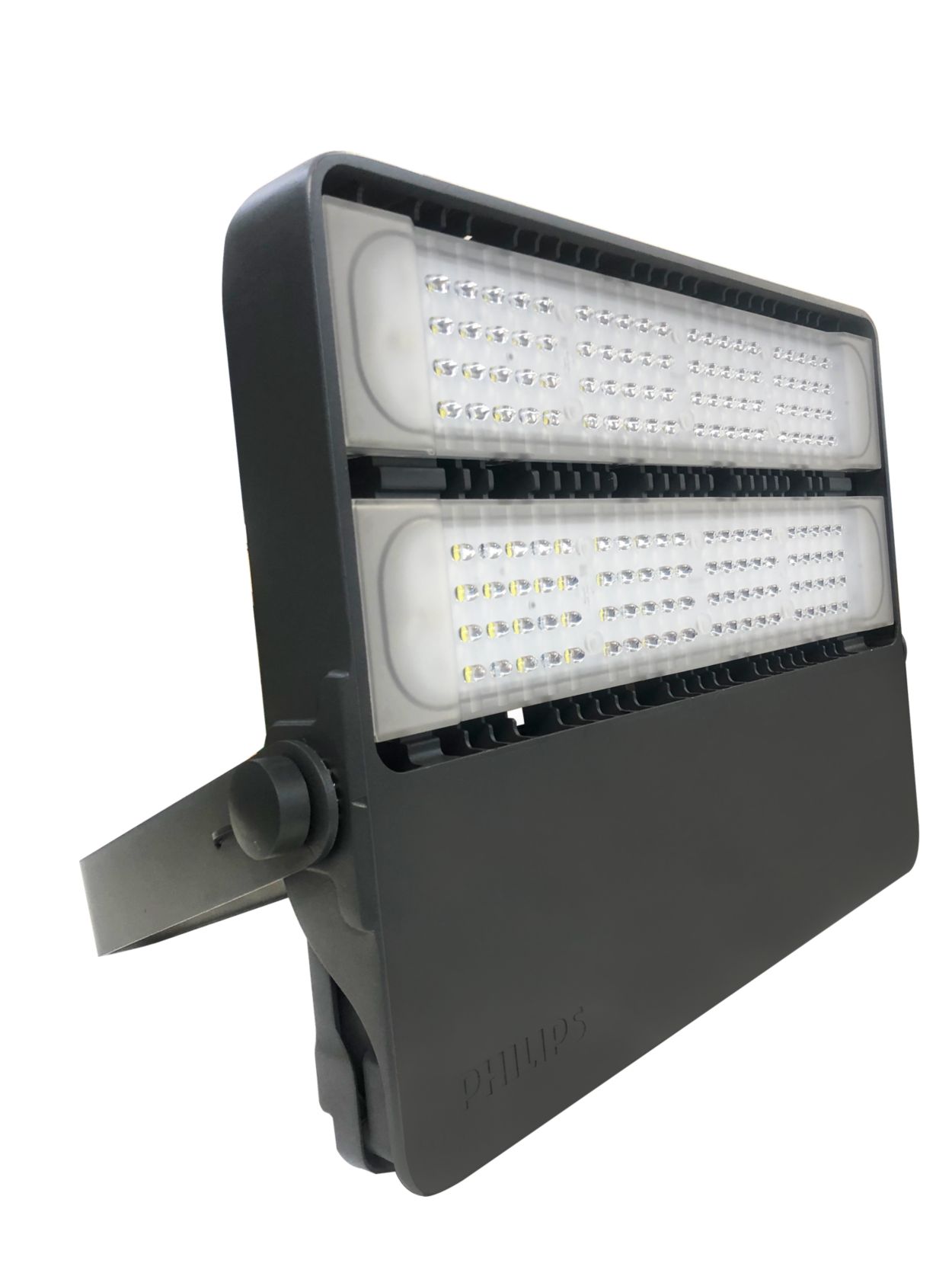

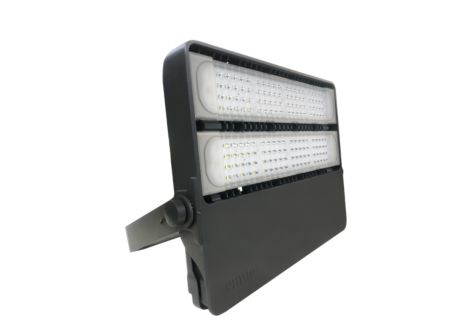

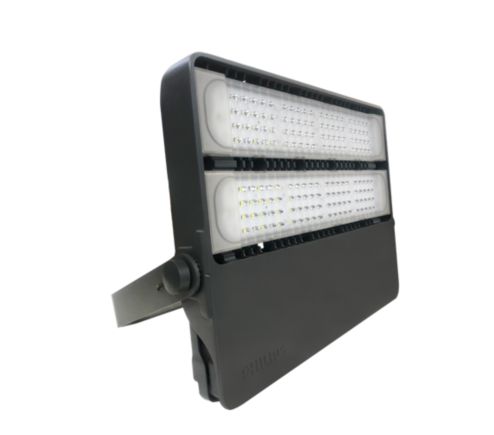

BVP485 LED370 CW FLNB PSU SPD GR

Specifications Show all

General information

Beam angle of light source	10 °
Light source color	757 cool white
Driver included	Yes
Optical cover/lens type	Polycarbonate
Luminaire light beam spread	2° x 10°
Control interface	Analog
Protection class IEC	Safety class I (I)
Flammability mark	F  [ For mounting on normally flammable surfaces]
Warranty period	5 years
Material	Aluminum
Optic type outdoor	Narrow beam angle 10°
Light source engine type	LED

Operating and electrical

Input Voltage	120 to 277 V
Input Frequency	50 Hz
Power Factor (Min)	0.95

Controls and dimming

Dimmable

No

Mechanical and housing

Housing Material	Aluminum Alloy
Optic material	Polycarbonate
Optical cover/lens material	Polycarbonate
Mounting device	Via U Shaped Bracket, Aiming Scale Angle, Universal Installation
Color	Gray

Approval and application

Ingress protection code	IP66  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	CHOC  [ 6 J (IK08)]
Surge Protection (Common/Differential)	Surge protection level until 10 kV

Initial performance (IEC compliant)

Initial luminous flux (system flux)	37000 lm
Initial LED luminaire efficacy	120 lm/W
Init. Corr. Color Temperature	5700 K
Init. Color Rendering Index	>70
Initial input power	300 W
Power consumption tolerance	+/-10%

Over time performance (IEC compliant)

Median useful life L70B50

50000 h

Application conditions

Ambient temperature range

0 to +35 °C

Product data

Order product name	BVP485 LED370 CW FLNB PSU SPD GR
Order code	919515813813
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	1
Material Nr. (12NC)	919515813813
Net Weight (Piece)	12.000 kg
