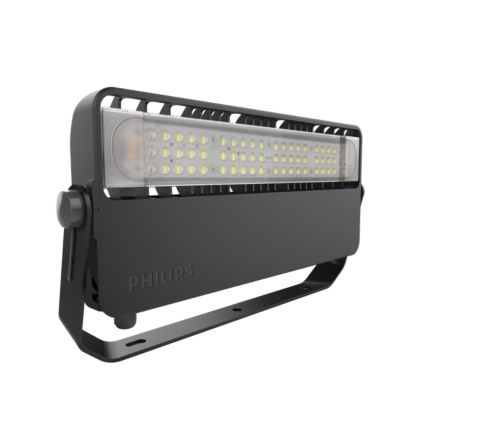

BVP483 LED210 CW SWB PSU GR

Specifications Show all

General information

Beam angle of light source	45 °
Light source color	857 daylight
Driver included	Yes
Optical cover/lens type	Polycarbonate
Luminaire light beam spread	2° x 45°
Control interface	Analog
Protection class IEC	Safety class I (I)
Flammability mark	F  [ For mounting on normally flammable surfaces]
Warranty period	2 years
Material	Aluminum
Optic type outdoor	Symmetrical Wide Beam angle 45°
Light source engine type	LED

Operating and electrical

Input Voltage	120 to 277 V
Input Frequency	50 Hz
Power Factor (Min)	0.95

Controls and dimming

Dimmable

Yes

Mechanical and housing

Housing Material	Aluminum die–cast
Optic material	Polycarbonate
Optical cover/lens material	Polycarbonate
Mounting device	Via U Shaped Bracket, Aiming Scale Angle, Universal Installation
Color	Gray

Approval and application

Ingress protection code	IP66  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK08  [ 5 J vandal-protected]
Surge Protection (Common/Differential)	Surge protection level until 4 kV

Initial performance (IEC compliant)

Initial luminous flux (system flux)	21000 lm
Initial LED luminaire efficacy	110 lm/W
Init. Corr. Color Temperature	5700 K
Init. Color Rendering Index	>70
Initial chromaticity	<5
Initial input power	175 W
Power consumption tolerance	+/-10%

Over time performance (IEC compliant)

Median useful life L70B50

50000 h

Application conditions

Ambient temperature range

0 to +35 °C

Product data

Order product name	BVP483 LED210 CW SWB PSU GR
Order code	919515813021
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	1
Material Nr. (12NC)	919515813021
Net Weight (Piece)	6.200 kg
