| Panel peak wattage | 200
W
|
| Panel voltage | 23
V
|
| Panel type | Mono crystalline
|
| Ingress protection code | -
|
| Mech. impact protection code | IK10
[20 J vandal-resistant] |
| Numerator - Quantity Per Pack | 1
|

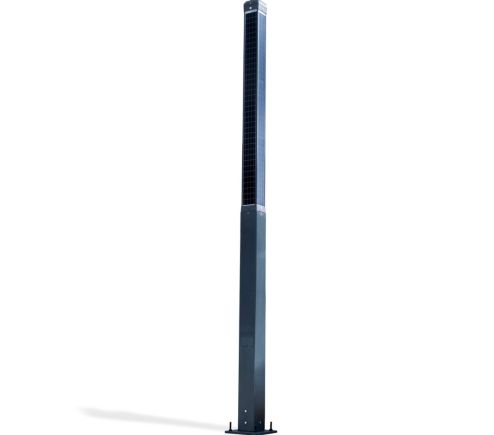

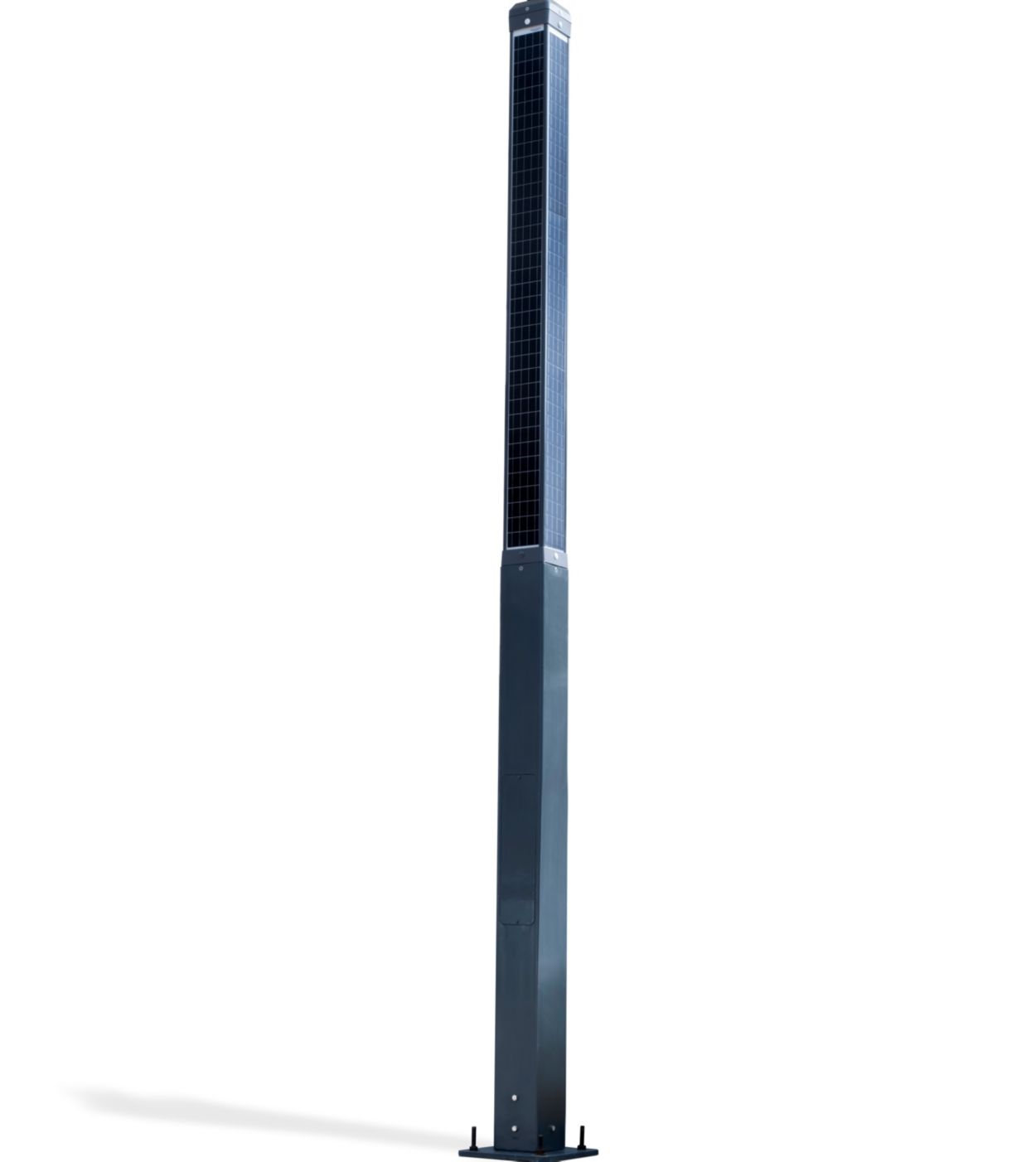

| Full product name | BDP302 Cart 4M Solar
|
| Numerator - Packs per outer box | 1
|
| Order product name | BDP302 Cart 4M Solar
|
| Material number (12NC) | 919515814899
|
| Order code | 919515814899
|
| Configurability | Not configurable
|
| Dimmable | No
|
| Driver included | No
|
| Overall width | 166
mm
|
| Housing Color | RAL 7011
|
| Material | Aluminum
|
| Dimensions (Height x Width x Depth) | 2122 x 166 x 166 mm
|
| Overall length | 166
mm
|
| Overall height | 2,122
mm
|
| Solar dimming profile | -
|
| Battery location | Inside the pole
|
| Ambient temperature range | 0 to +35 °C
|
| Correlated Color Temperature (Nom) | -
|
| Color rendering index (CRI) | N.A.
|
| Optical cover/lens type | -
|
