    • UrbanSpark Gen 3 all in one solar post top lantern

      BGP301 LED25 NW 12V 4M 7011
      BGP301 LED25 NW 12V 4M 7011

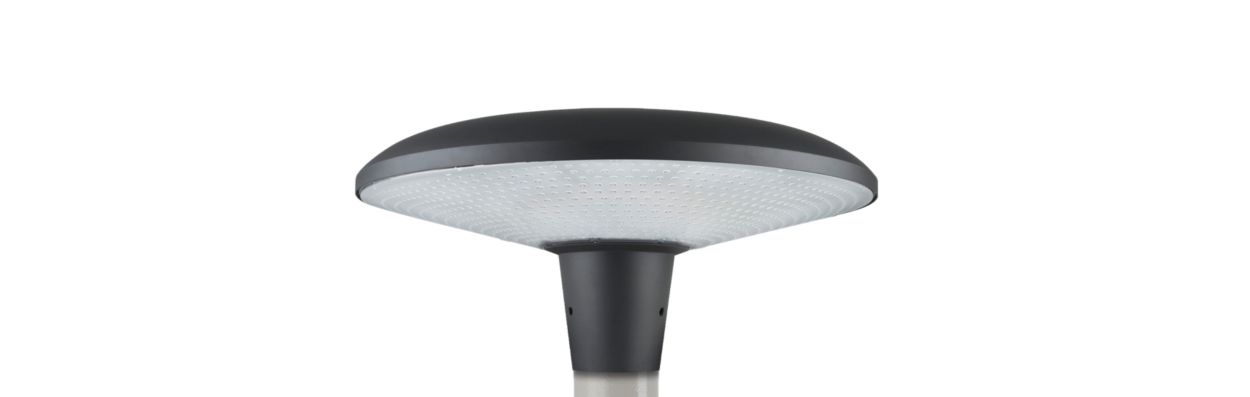

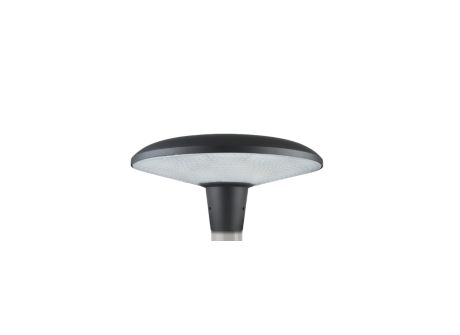

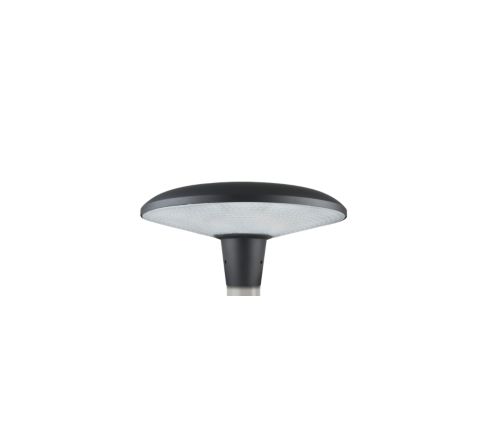

      UrbanSpark Gen 3

      BGP301 LED25 NW 12V 4M 7011

      Order code: 919515814877

    Specifications Show all

    General information
    Driver included
    No
    Optical cover/lens type
    Polycarbonate
    Material
    Pressure die cast aluminum
    Operating and electrical
    Input Voltage
    24 V
    Controls and dimming
    Dimmable
    Yes
    Configurability
    Configurable
    Mechanical and housing
    Overall length
    450 mm
    Overall width
    204 mm
    Overall height
    450 mm
    Color
    RAL 7011
    Approval and application
    Ingress protection code
    IP66  [ Dust penetration-protected, jet-proof]
    Mech. impact protection code
    IK10  [ 20 J vandal-resistant]
    Initial performance (IEC compliant)
    Initial luminous flux (system flux)
    2500 lm
    Initial LED luminaire efficacy
    120 lm/W
    Init. Corr. Color Temperature
    4000 K
    Init. Color Rendering Index
    >70
    Over time performance (IEC compliant)
    Median useful life L70B50
    50000 h
    Application conditions
    Ambient temperature range
    0 to +35 °C
    Solar dimming profile
    Dusk to 3 hrs -100%  [Next 5hrs- 40% ]
    Grid connection type
    Off grid
    Battery location
    Inside the pole
    Product data
    Order product name
    BGP301 LED25 NW 12V 4M 7011
    Order code
    919515814877
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    1
    Material Nr. (12NC)
    919515814877
    Net Weight (Piece)
    4.000 kg
    Installation Diagrams
    Downloads
    Leaflets
    Visuals
    Brochures
    Software Plugins
    • IES UrbanSpark Gen 3 IES 2.3 kB
