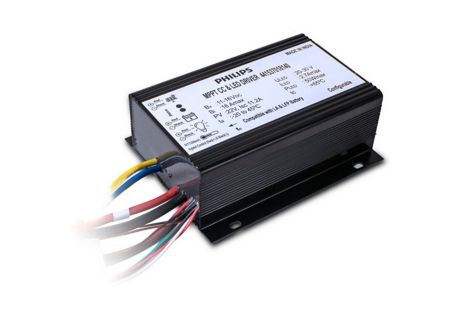

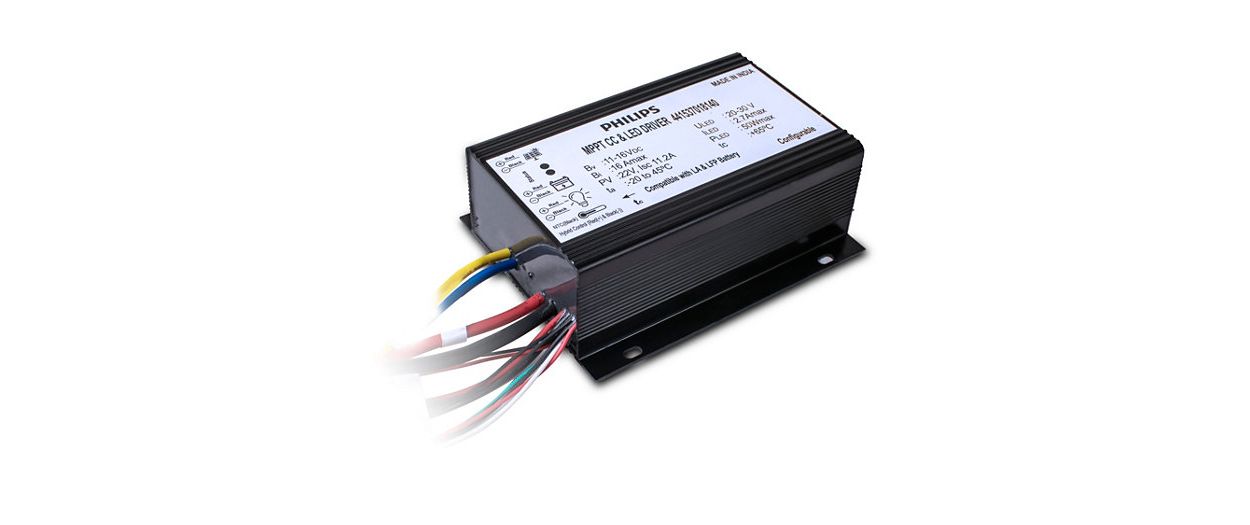

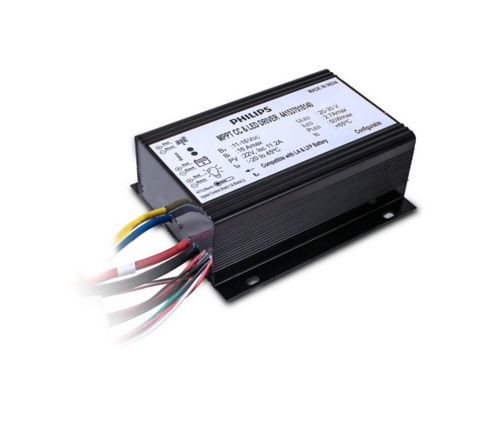

ZJS401 CCC 200Wp 12V RS SOLAR VP US

Specifications Show all

General information

Control interface	BLE
Material	Aluminum

Operating and electrical

Charge controller type	MPPT
Charge controller wattage	200 W

Controls and dimming

Configurability

Configurable

Mechanical and housing

Overall length	495 mm
Overall width	139 mm
Overall height	111 mm
Color	Black

Approval and application

Ingress protection code

IP67  [ Dust penetration-protected, watertight]

Initial performance (IEC compliant)

Initial LED luminaire efficacy

170 lm/W

Application conditions

Ambient temperature range	0 to +35 °C
Solar dimming profile	-
Grid connection type	Off grid

Product data

Order product name	ZJS401 CCC 200Wp 12V RS SOLAR VP US
EAN/UPC - Product	8719514923577
Order code	919415811255
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	10
Material Nr. (12NC)	919415811255
Net Weight (Piece)	1.100 kg
