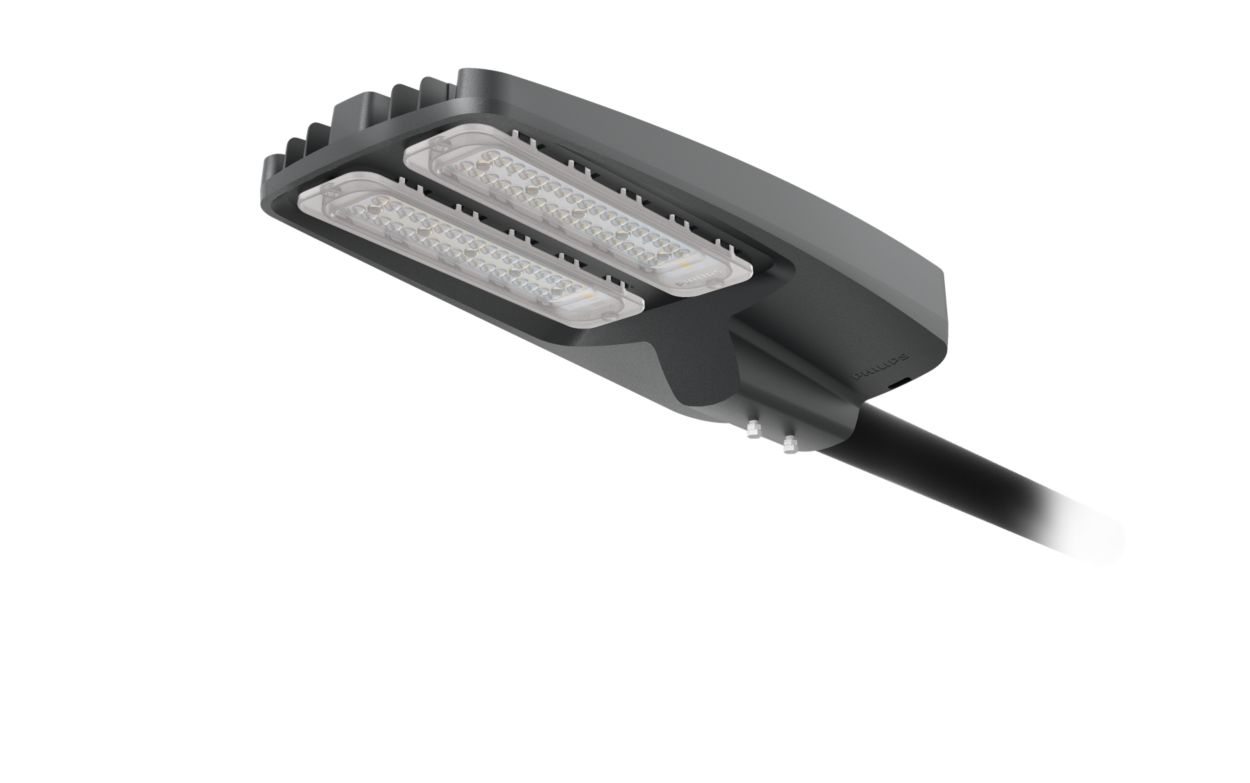

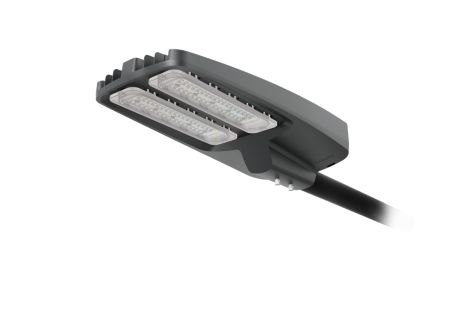

BRP360 LED 295 CW HO SLC S1 PSU GR

Specifications Show all

General information

Beam angle of light source	60 °
Light source color	757 cool white
Driver included	Yes
Optic type	60  [ Beam angle 60°]
Optical cover/lens type	PC-MLO  [ Polycarbonate micro lens optic]
Luminaire light beam spread	60°
Control interface	Analog
Protection class IEC	Safety class I (I)
Flammability mark	F  [ For mounting on normally flammable surfaces]
Warranty period	2 years
Material	Aluminum
Optic type outdoor	Asymmetrical axis angle 60° wide beam (A60)
Light source engine type	LED

Operating and electrical

Input Voltage	120 to 277 V
Input Frequency	50 to 60 Hz
Power Factor (Min)	0.95

Controls and dimming

Dimmable

Yes

Mechanical and housing

Housing Material	Aluminum die–cast
Optic material	Polycarbonate
Optical cover/lens material	Polycarbonate
Mounting device	Pole-mounting diameter 48-60 mm
Color	Gray

Approval and application

Ingress protection code	IP66  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK09  [ 10 J]
Surge Protection (Common/Differential)	Surge protection level until 4 kV

Initial performance (IEC compliant)

Initial luminous flux (system flux)	29500 lm
Initial LED luminaire efficacy	120 lm/W
Init. Corr. Color Temperature	5700 K
Init. Color Rendering Index	>70
Initial chromaticity	SDCM<5
Initial input power	235 W
Power consumption tolerance	+/-10%

Over time performance (IEC compliant)

Median useful life L70B50

50000 h

Application conditions

Ambient temperature range

-10 to +35 °C

Product data

Order product name	BRP360 LED 295 CW HO SLC S1 PSU GR
Order code	919515813407
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	1
Material Nr. (12NC)	919515813407
Net Weight (Piece)	7.000 kg
