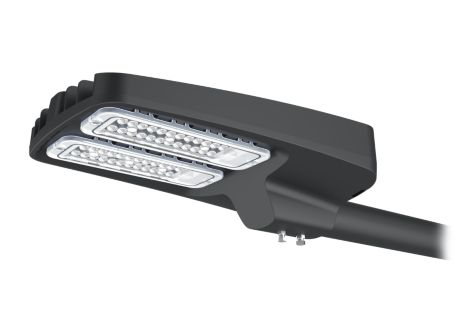

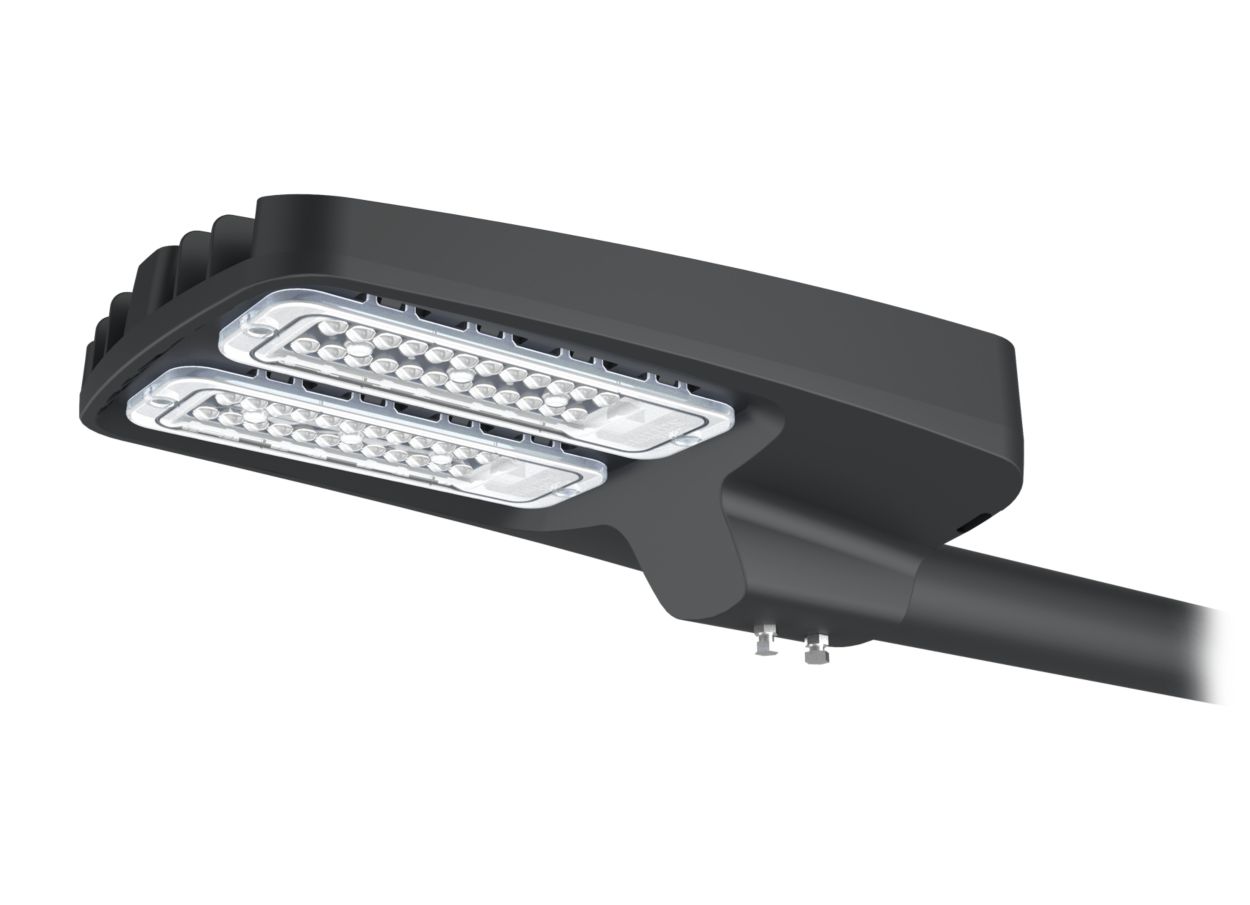

BRP 340 LED 161 CW HO SLC S1 PSU GR SPD

Specifications Show all

General information

Beam angle of light source	60 °
Light source color	857 daylight
Driver included	Yes
Optic type	Assymetric Beam angle 60°
Optical cover/lens type	Polycarbonate
Luminaire light beam spread	60°
Control interface	-
Protection class IEC	Safety class I (I)
Flammability mark	F  [ For mounting on normally flammable surfaces]
Warranty period	2 years
Material	Aluminum
Optic type outdoor	Asymmetrical axis angle 60° wide beam (A60)
Light source engine type	LED

Operating and electrical

Input Voltage	120 to 277 V
Input Frequency	50 Hz
Power Factor (Min)	0.95

Controls and dimming

Dimmable

No

Mechanical and housing

Housing Material	Aluminum die–cast
Optic material	Polycarbonate
Optical cover/lens material	Polycarbonate
Mounting device	Pole Mounting
Color	Gray

Approval and application

Ingress protection code	IP65  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK08  [ 5 J vandal-protected]
Surge Protection (Common/Differential)	Surge protection level until 10 kV differential mode

Initial performance (IEC compliant)

Initial luminous flux (system flux)	16000 lm
Initial LED luminaire efficacy	122 lm/W
Init. Corr. Color Temperature	5700 K
Init. Color Rendering Index	>70
Initial chromaticity	<5
Initial input power	140 W
Power consumption tolerance	+/-10%

Over time performance (IEC compliant)

Median useful life L70B50

50000 h

Application conditions

Ambient temperature range

0 to +35 °C

Product data

Order product name	BRP 340 LED 161 CW HO SLC S1 PSU GR SPD
Order code	919515812541
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	2
Material Nr. (12NC)	919515812541
Net Weight (Piece)	4.000 kg
