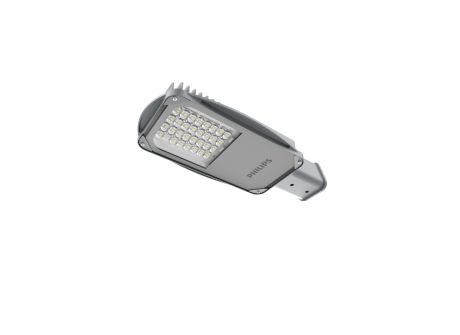

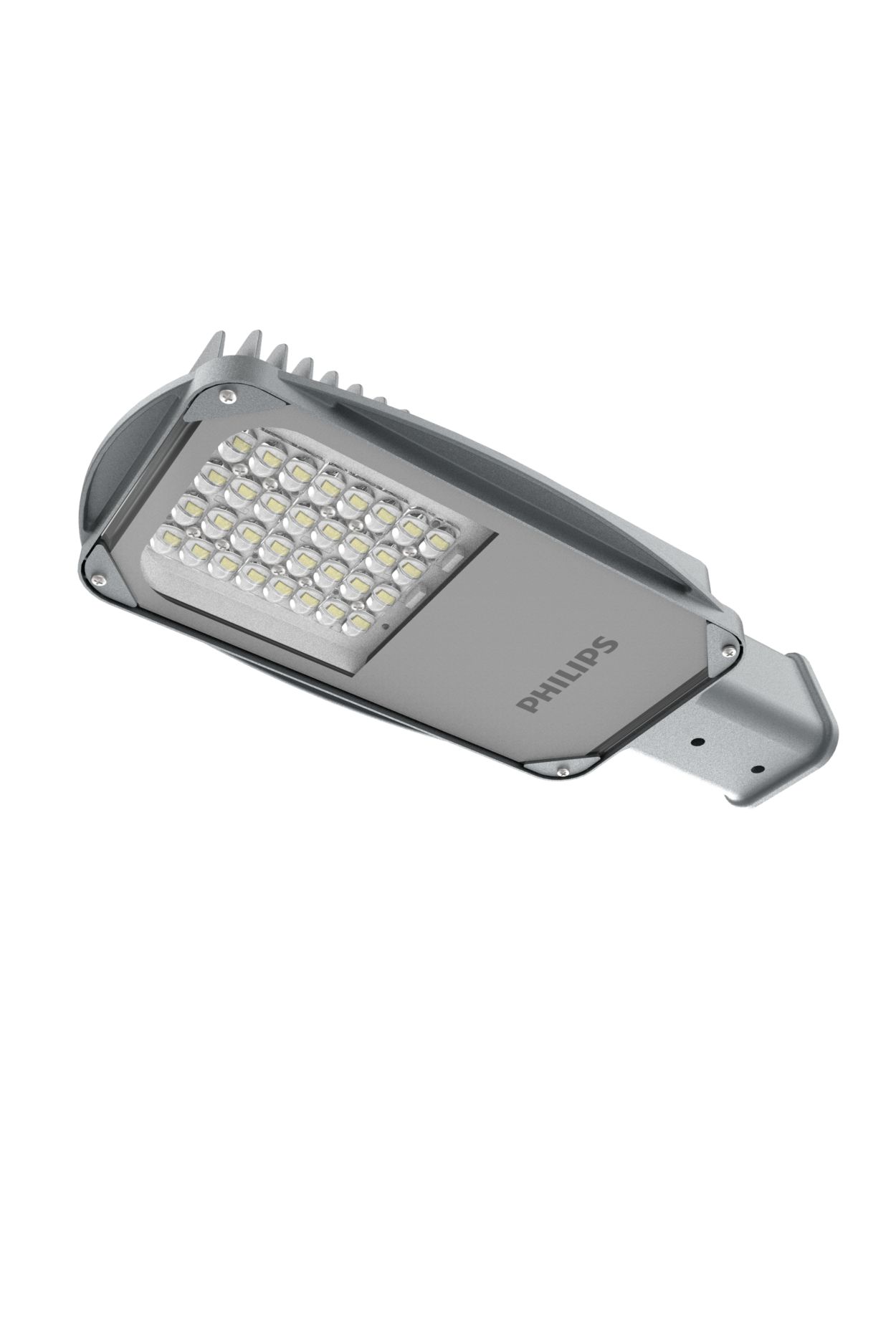

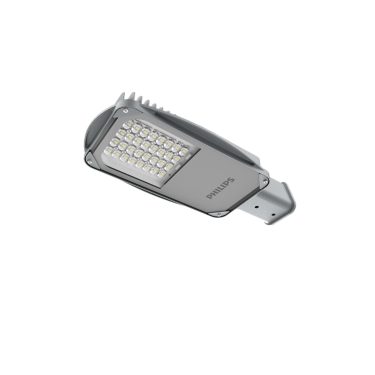

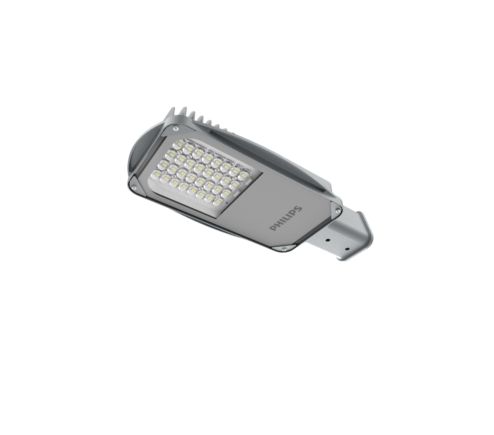

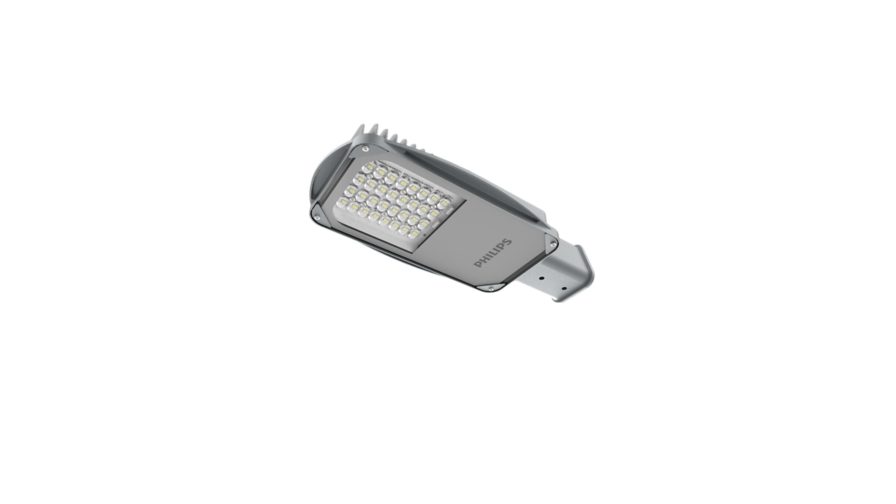

BRP335 LED180 CW R5C FG PSU S1 SPD

Specifications Show all

General information

Beam angle of light source	120 °
Light source color	757 cool white
Driver included	Yes
Optical cover/lens type	Polycarbonate
Luminaire light beam spread	130° x 88°
Control interface	-
Protection class IEC	Safety class I (I)
Flammability mark	F  [ For mounting on normally flammable surfaces]
Warranty period	3 years
Material	Aluminum
Optic type outdoor	Distribution Symmetric Wide
Light source engine type	LED

Operating and electrical

Input Voltage	140-270 V
Input Frequency	50 Hz
Power Factor (Min)	0.95

Controls and dimming

Dimmable

No

Mechanical and housing

Housing Material	Aluminium pressure die cast
Optic material	Polycarbonate
Optical cover/lens material	Polycarbonate
Mounting device	Spigot for diameter 34 to 76 mm
Color	Aluminum and gray

Approval and application

Ingress protection code	IP66  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK07  [ 2 J reinforced]
Surge Protection (Common/Differential)	4/4 kV

Initial performance (IEC compliant)

Initial luminous flux (system flux)	18000 lm
Initial LED luminaire efficacy	120 lm/W
Init. Corr. Color Temperature	5700 K
Init. Color Rendering Index	>70
Initial input power	150 W
Power consumption tolerance	+/-10%

Over time performance (IEC compliant)

Median useful life L70B50

50000 h

Application conditions

Ambient temperature range

-10 to +50 °C

Product data

Order product name	BRP335 LED180 CW R5C FG PSU S1 SPD
Order code	919515815629
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	2
Material Nr. (12NC)	919515815629
Net Weight (Piece)	3.200 kg
