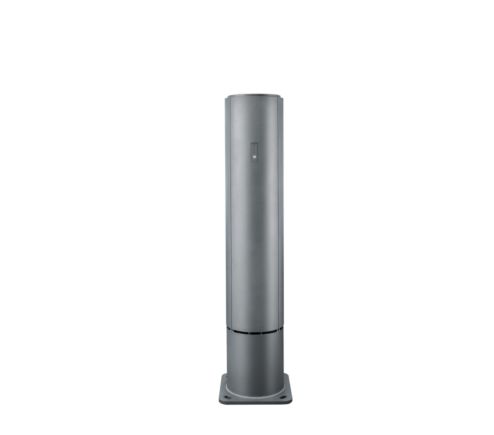

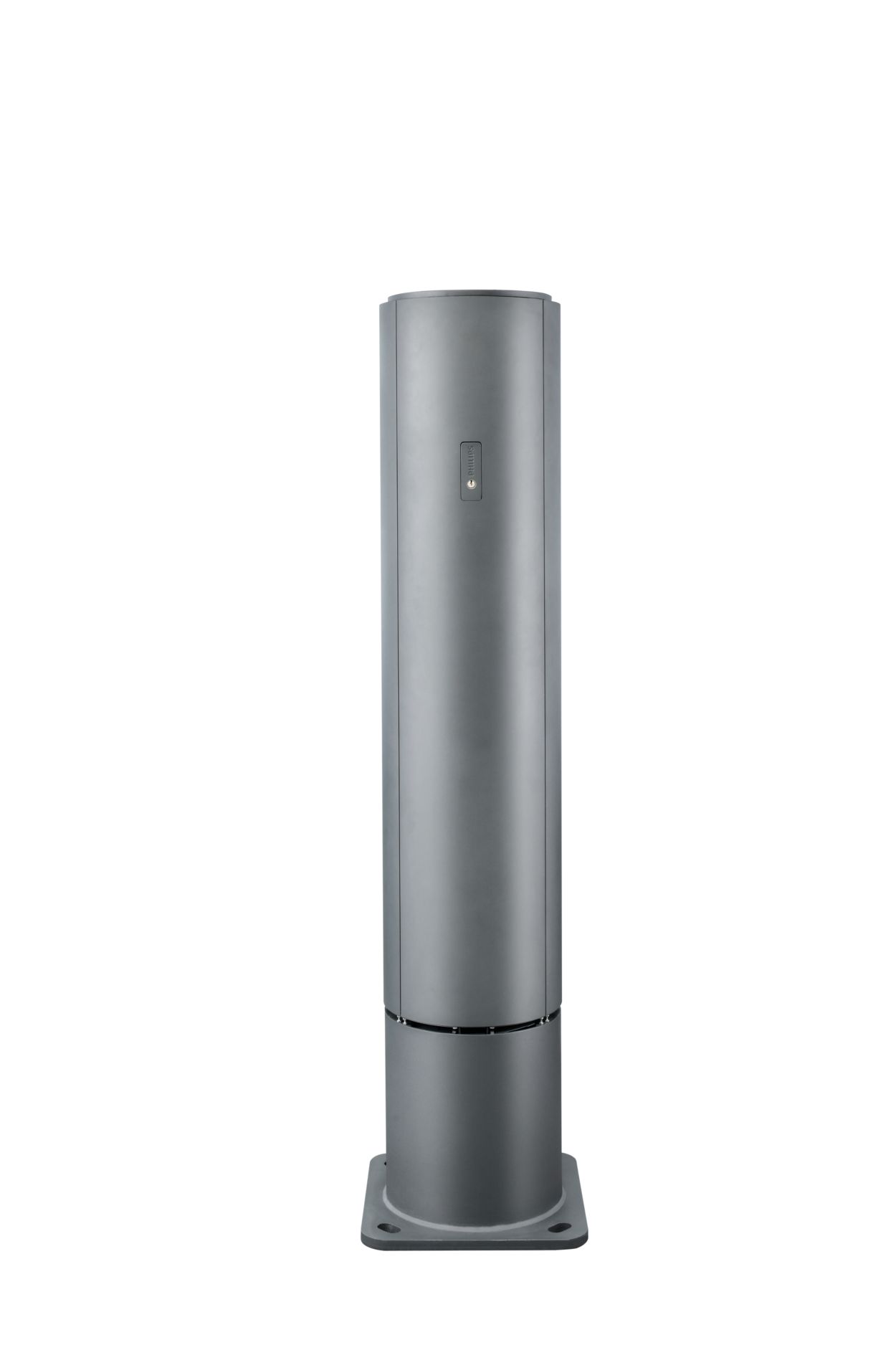

PBU Base Unit

Specifications Show all

Operating and Electrical

Input Frequency	50 or 60 Hz
Power Factor (Fraction)	0.9
Input Voltage	220-240 V
Cable	Cable 0.5 m without plug
Connection	Flying leads/wires
Power Consumption	50 W
Line Frequency	50 or 60 Hz

Product Data

Numerator - Quantity Per Pack	1
Material number (12NC)	911401701203
Full product name	PBU Base Unit
Numerator - Packs per outer box	1
Order product name	PBU Base Unit
Order code	911401701203

Approval and Application

Protection class IEC	Safety class I
CE mark	-
Ingress protection code	-
Mech. impact protection code	-

Controls and Dimming

Control interface	-
Dimmable	No

General Information

Accessory color	Traffic grey
Driver included	Yes

Mechanical and Housing

Overall width	419 mm
Optical cover/lens material	Polycarbonate
Housing Color	Gray
Dimensions (Height x Width x Depth)	1665 x 419 x 265 mm
Housing Material	Aluminum die cast
Overall length	265 mm
Overall diameter	324 mm
Material	Steel frame and Aluminum cover
Overall height	1,665 mm

Initial Performance (IEC Compliant)

Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-40 to +50 °C

Light Technical

Correlated Color Temperature (Nom)	4000 K
Luminous Efficacy (rated) (Nom)	136 lm/W
Color rendering index (CRI)	>70
Optical cover/lens type	Polycarbonate bowl/cover
Light source color	740 neutral white
Luminous Flux	6,800 lumen
