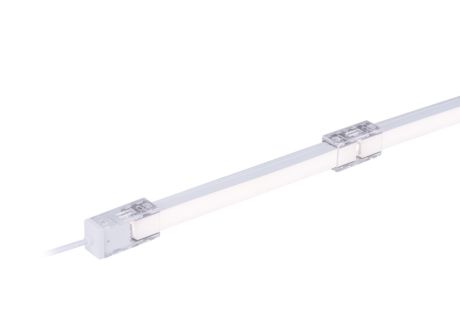

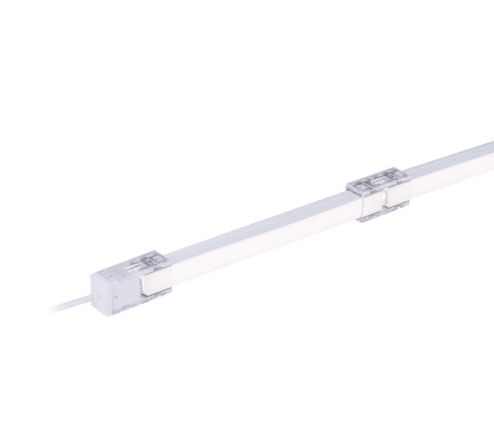

BGC401 900LM 14W 3500K L5 1515 T G

Specifications Show all

Operating and Electrical

Input Frequency	- Hz
Input Voltage	24 DC V
Cable	Cable 0.6 m without plug
Connection	Flying leads/wires
Power Consumption	59 W
Line Frequency	- Hz

Product Data

Numerator - Quantity Per Pack	1
EAN/UPC - Case	6923828637316
Material number (12NC)	911401767782
Full product name	BGC401 900LM 14W 3500K L5 1515 T G
Full product code	692382863731600
Numerator - Packs per outer box	10
Order product name	BGC401 900LM 14W 3500K L5 1515 T G
Order code	911401767782

Approval and Application

Protection class IEC	Safety class III
CE mark	CE mark
Ingress protection code	IP66  [Dust penetration-protected, jet-proof]
Mech. impact protection code	IK04  [0.5 J standard plus]

Controls and Dimming

Control interface	-
Constant light output	No
Dimmable	No

Mechanical and Housing

Overall width	5,000 mm
Optical cover/lens material	Silicon rubber
Fixation material	Stainless steel
Housing Color	White
Dimensions (Height x Width x Depth)	15 x 5000 x 15 mm
Housing Material	Silicon rubber
Overall length	15 mm
Overall height	15 mm

General Information

Lighting Technology	LED
Driver included	No

Initial Performance (IEC Compliant)

Initial chromaticity	4 SDCM
Power consumption tolerance	+/-10%
Luminous flux tolerance	-10%,+15%

Temperature

Ambient temperature range

-40 to +45 °C

Light Technical

Correlated Color Temperature (Nom)	3500 K
Color rendering index (CRI)	>90
Luminous Efficacy (rated) (Nom)	64 lm/W
Optical cover/lens type	Opal
Light source color	935 warm white
Luminous Flux	4,500 lumen
