    • EB-E electronic ballasts for TL-D lamps

      EBE 236 TLD 240
      EBE 236 TLD 240
      EB-E Electronic ballasts for TL-D lamps (India)

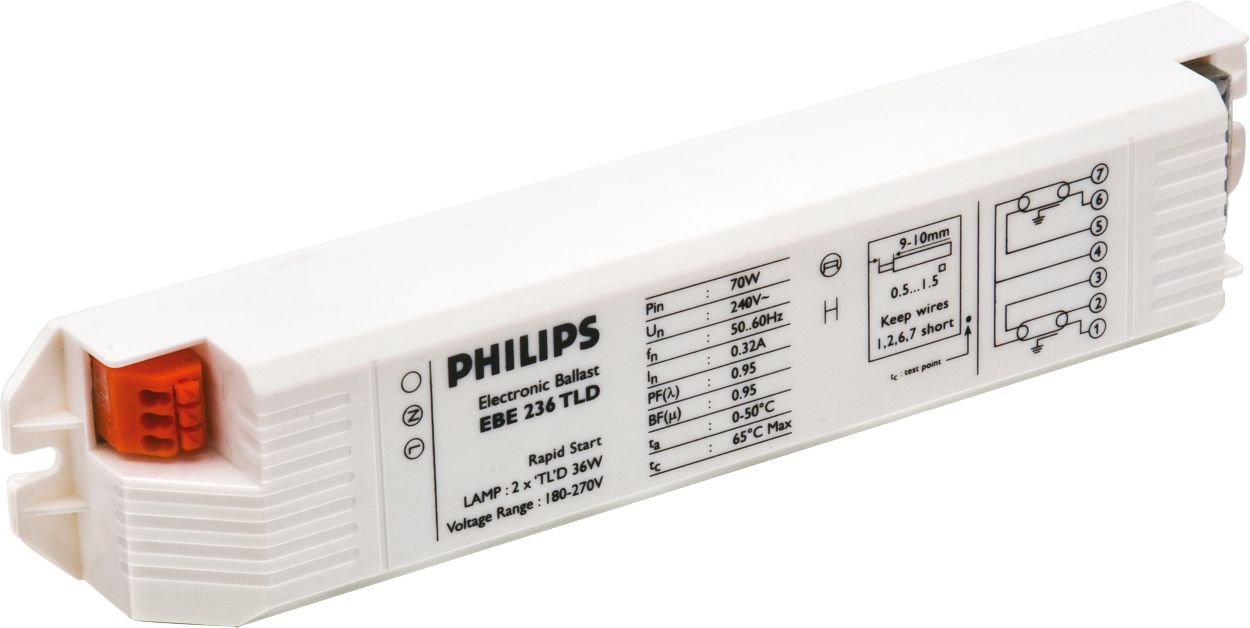

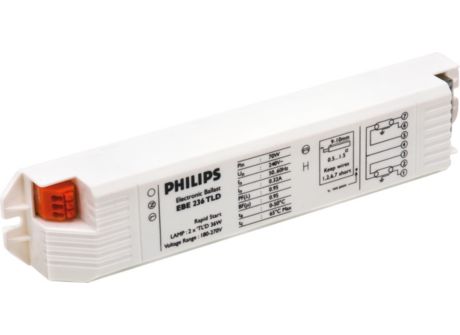

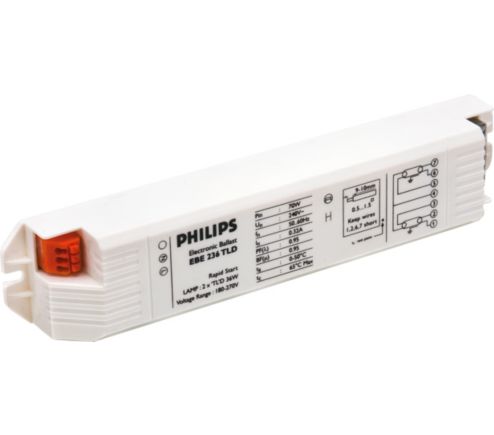

      EBE 236 TLD 240

      Downloads

      Spec Sheet
      Size:484.1 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Input Frequency
    50 to 60 Hz
    Input Voltage
    220 to 240 V
    Line Frequency
    50 to 60 Hz
    Approval and Application
    Energy Efficiency Index
    Not specified
    Safety Standard
    -  [Not specified]
    Product Data
    Numerator - Quantity Per Pack
    1
    EAN/UPC - Case
    8727900067880
    Full product code
    871150088486200
    Full product name
    EBE 236 TLD 240
    Numerator - Packs per outer box
    10
    Order product name
    EBE 236 TLD 240
    Material number (12NC)
    913702242112
    Order code
    913702242112
    General Information
    Number of Lamps
    2 piece/unit
    Wiring
    Connector Type Output Terminals
    WAGO 251 universal connector  [Suitable for both automatic wiring (ALF and ADS) and manual wiring]
    Connector Type Input Terminals
    WAGO 251 universal connector  [Suitable for both automatic wiring (ALF and ADS) and manual wiring]
    Temperature
    T-Case Maximum (Max)
    65 °C
    Ambient temperature range
    0 °C to 50 °C
    Installation Diagrams
    EB-B Slim136 TLD 220
    EB-B Slim136 TLD 220
    GDWD_INEFLU01_0008-Wiring diagram
    GDWD_INEFLU01_0008-Wiring diagram
