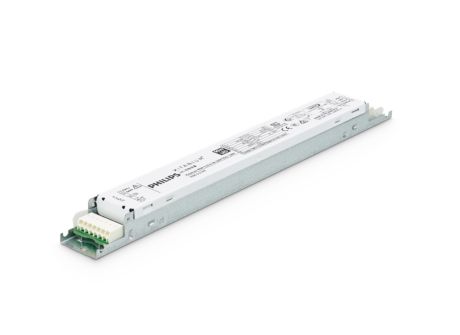

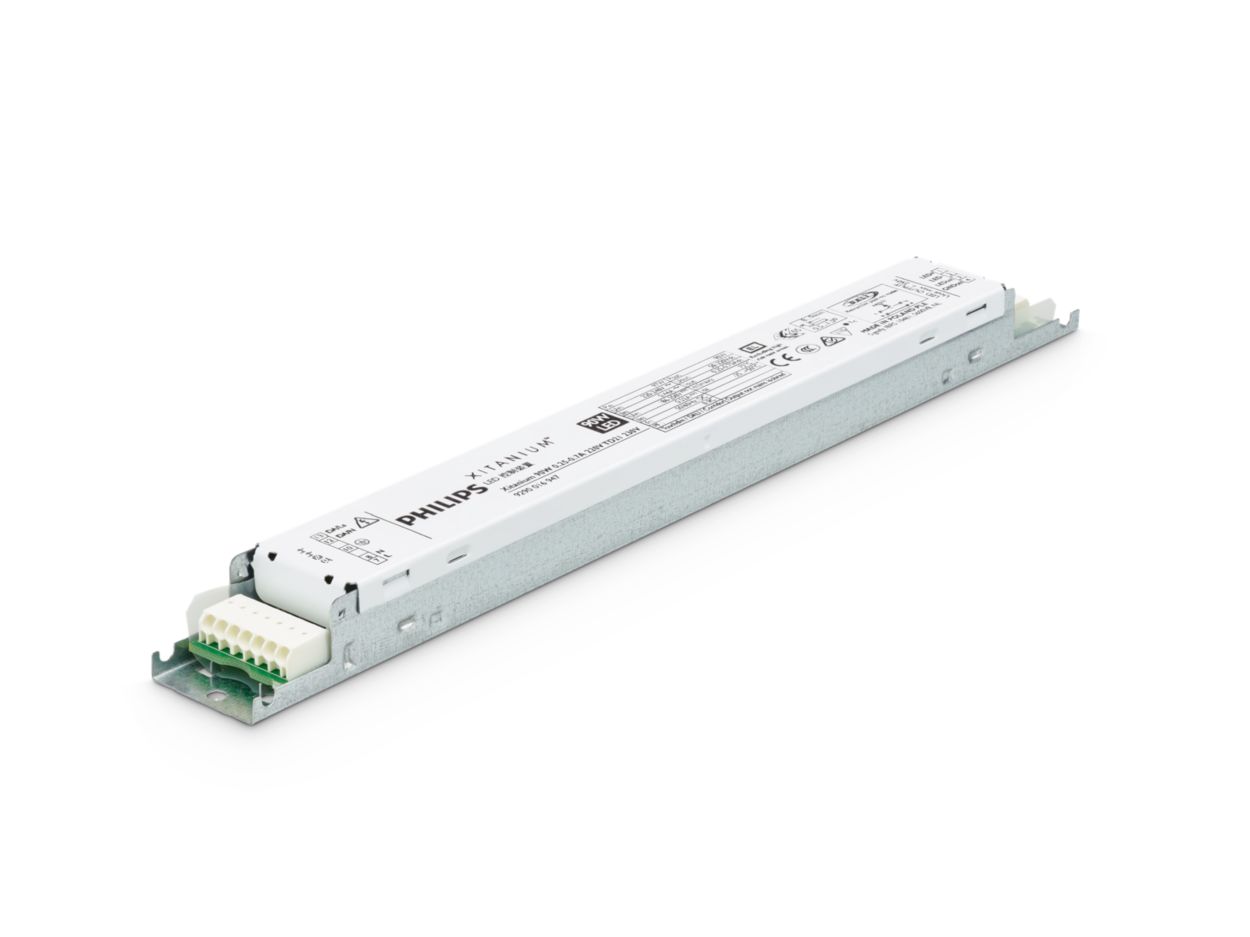

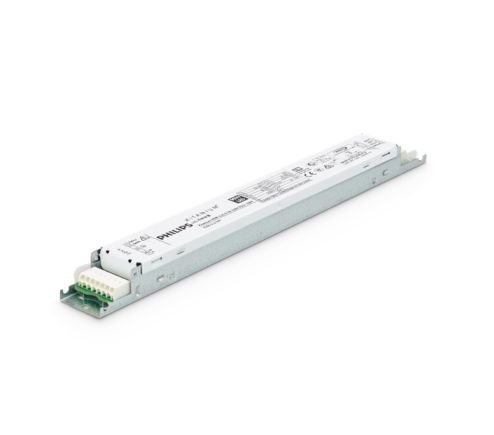

      Xitanium 36W 0.12-0.4A 115V 230V
      LED
      Xitanium 36W 0.12-0.4A 115V 230V
      Xitanium LED linear drivers – non-isolated

      Xitanium 36W 0.12-0.4A 115V 230V

      Downloads

      Spec Sheet
      Size:391.6 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Open Circuit Voltage (DC) (Max)
    330 V
    Output Current (Min)
    120 mA
    Constant Voltage (CV)
    False
    Inrush Current Peak (Max)
    14 A
    Constant Current (CC)
    True
    Mains voltage performance (DC)
    186-250 V
    Energy Metering
    No
    Output Current (Max)
    400 mA
    Protection Level Up (L-N) at 5 kA (Max)
    1 kV
    Output Power (Min)
    10 W
    Total Harmonic Distortion IEC (Max)
    20 %
    Maximum Efficiency at Full Load
    91.4 %
    Default output current
    120 mA
    Power Factor 100% Load (Max)
    0.9
    Output Voltage (Max)
    115 V
    Output Current Ripple (Max)
    4 %
    Number of Products on MCB (16A Type-C) (Max)
    33 piece/unit
    Protection Level Up (LN-Earth) at 5 kA (Max)
    2 kV
    Diagnostics
    False
    Inrush Current Width to 50% of Peak
    250 µs
    Output Voltage (Min)
    50 V
    Input current (DC)
    0.19
    Line Frequency
    50 to 60 Hz
    Input Frequency
    50 to 60 Hz
    Output Power (Max)
    36 W
    Power Factor (Fraction)
    0.9
    Output Current Tolerance (Max)
    5 %
    Mains voltage operation (DC)
    168-275 V
    Input current (AC)
    0.17 mA
    Product Data
    Numerator - Quantity Per Pack
    1
    EAN/UPC - Case
    8718696440018
    Full product code
    871869644000100
    Full product name
    Xitanium 36W 0.12-0.4A 115V 230V
    Material number (12NC)
    929000950606
    Order code
    929000950606
    Order product name
    Xitanium 36W 0.12-0.4A 115V 230V
    Numerator - Packs per outer box
    24
    Approval and Application
    Corridor Mode
    True
    Over Power Protection
    Protected
    Protection class IEC
    Safety class I
    Approval Marks
    CCC certificate
    CE marking
    ENEC certificate
    RCM compliance
    REACH compliance
    RoHS compliance
    Output Current Set Options
    LEDset
    Open Circuit Protection
    Protected
    Ingress protection code
    IP20  [Finger-protected]
    Isolation Classification
    No
    Short Circuit Protection
    Protected
    Controls and Dimming
    D4i compliant
    No
    DynaDimmer
    No
    Constant light output
    No
    Dimmable
    No
    General Information
    Nominal lifetime
    50,000 hour(s)
    Lighting Technology
    LED
    Mechanical and Housing
    Housing
    Office 280x30x21 3p7p SideM
    Overall width
    30 mm
    Product Length
    280 mm
    Dimensions (Height x Width x Depth)
    21 x 30 x 280 mm
    Overall length
    280 mm
    Overall height
    21 mm
    Wiring
    Input Wire Gauge
    16-20
    Hot Wiring
    no
    Cable Length From Device to Lamp
    4 m
    Output Wire Cross Section (Min)
    0.5 mm²
    Input wire strip length
    8 mm to 9 mm mm
    Input Wire Cross Section (Min)
    0.5 mm²
    Output Wire Cross Section (Max)
    1.5 mm²
    Connector Type Input Terminals
    Wago 744
    Output wire strip length
    8 mm to 9 mm mm
    Input Wire Cross Section (Max)
    1.5 mm²
    Connector Type Output Terminals
    Wago 744
    Temperature
    T-Case Lifetime (Max)
    75 °C
    Ambient temperature range
    -25 °C to 50 °C
    T-Case Maximum (Max)
    75 °C
    Maximum case temperature (in case of failure)
    110 °C
    Module Temperature Protection
    no
    System characteristics
    Central DC Operation
    Yes
    YellowDot ready
    No
