    • Built for performance - Waterproof Lighting solution for Dusty and Humid application

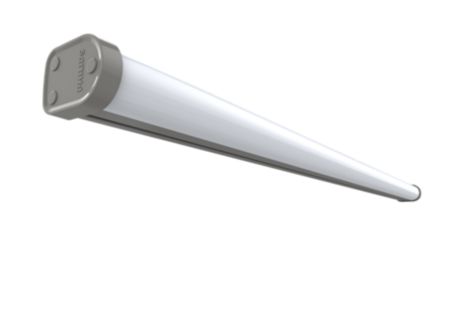

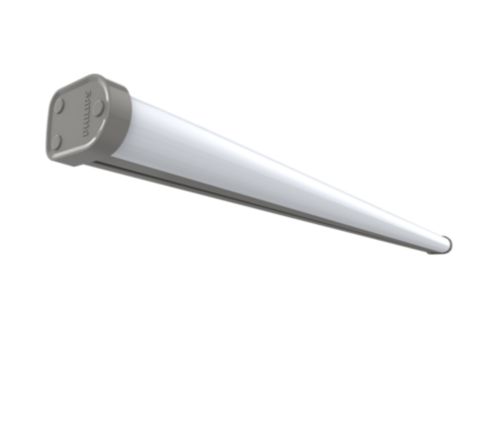

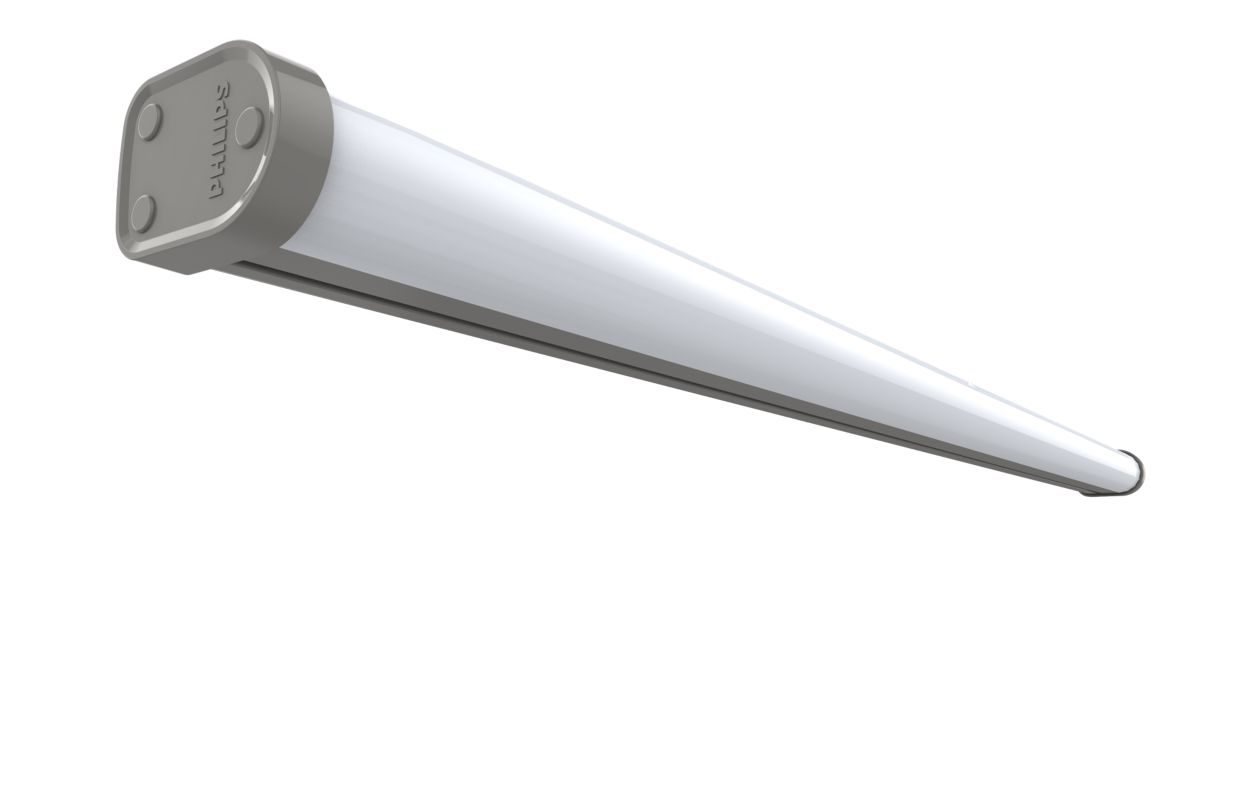

      WT201C LED24S-6500 PSU L120 S2
      WT201C LED24S-6500 PSU L120 S2
      Smartbright WT200/201 waterproof

      WT201C LED24S-6500 PSU L120 S2

      Downloads

      Spec Sheet
      Size:411.7 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Input Frequency
    50 Hz
    Power Factor (Fraction)
    0.95
    Input Voltage
    140-270 V
    Power Consumption
    18 W
    Line Frequency
    50 Hz
    Over Time Performance (IEC Compliant)
    Median useful life L70B50
    50,000 hour(s)
    Approval and Application
    Protection class IEC
    Safety class I
    Surge Protection (Common/Differential)
    Surge protection level until 4 kV
    Warranty period
    2 years
    Flammability mark
    For mounting on normally flammable surfaces
    Ingress protection code
    IP65  [Dust penetration-protected, jet-proof]
    Mech. impact protection code
    IK08  [5 J vandal-protected]
    Product Data
    Numerator - Quantity Per Pack
    1
    Material number (12NC)
    919515813273
    Full product name
    WT201C LED24S-6500 PSU L120 S2
    Order product name
    WT201C LED24S-6500 PSU L120 S2
    Numerator - Packs per outer box
    6
    Order code
    919515813273
    Controls and Dimming
    Dimmable
    No
    General Information
    Driver included
    Yes
    Light source engine type
    LED
    Mechanical and Housing
    Mounting device
    External Click Fix Mounting Bracket
    Optical cover/lens material
    Polycarbonate
    Optic material
    Polycarbonate
    Housing Color
    Gray
    Housing Material
    Polycarbonate
    Material
    Polycarbonate
    Initial Performance (IEC Compliant)
    Power consumption tolerance
    +/-10%
    Initial chromaticity
    <5
    Temperature
    Ambient temperature range
    0 to +45 °C
    Light Technical
    Correlated Color Temperature (Nom)
    6500 K
    Color rendering index (CRI)
    >80
    Luminous Efficacy (rated) (Nom)
    130 lm/W
    Optic type
    Beam angle 120°
    Optical cover/lens type
    Polycarbonate
    Light source color
    865 cool daylight
    Beam angle of light source
    120 degree(s)
    Luminous Flux
    2,400 lumen
    Luminaire light beam spread
    120°
    Installation Diagrams
    WT201C LED
    WT201C LED
    Downloads
    Leaflets
    Visuals
    Brochures
    Software Plugins
    • IES IES File - WT201C LED24S-6500 PSU L120 S2 IES 22.7 kB
