    • CoreLine Waterproof – the clear choice for LED

      WT120C G2 LED75S/840 PSU PCO L1500
      LED
      WT120C G2 LED75S/840 PSU PCO L1500
      CoreLine Waterproof

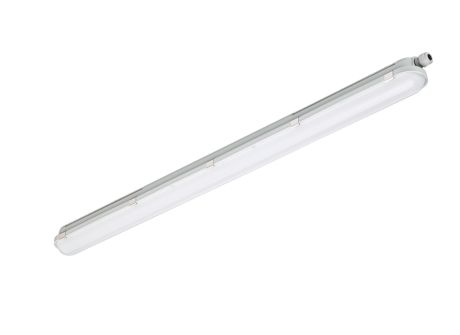

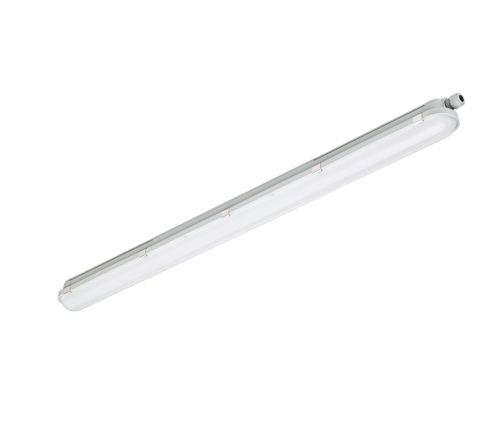

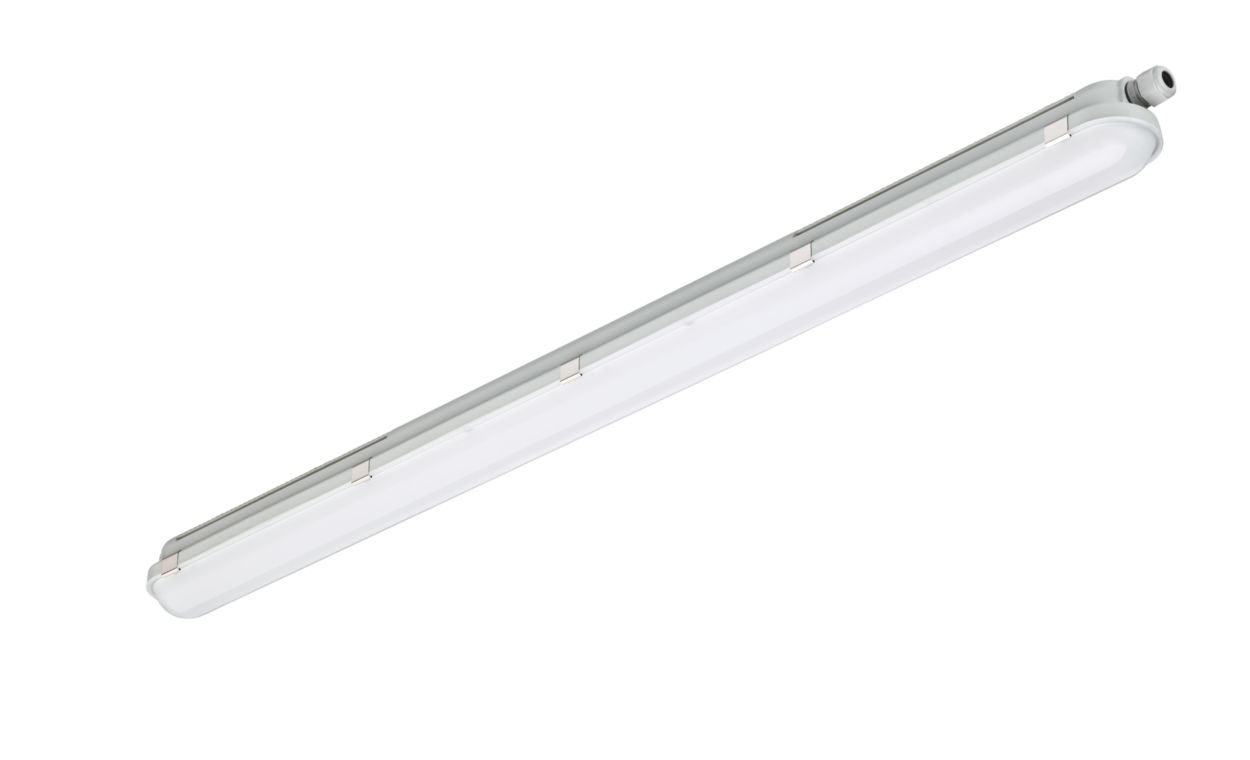

      WT120C G2 LED75S/840 PSU PCO L1500

    Specifications Show all

    Operating and Electrical
    Number of products on MCB of 16 A type B
    31
    Input Voltage
    220 to 240 V
    Power Consumption
    57.1 W
    Inrush current
    15 A
    Cable
    -
    Connection
    Push-in connector 3-pole
    Line Frequency
    50 or 60 Hz
    Input Frequency
    50 or 60 Hz
    Power Factor (Fraction)
    0.9
    Inrush time
    0.24 ms
    Over Time Performance (IEC Compliant)
    Control gear failure rate at median useful life 50000 h
    5 %
    Lumen maintenance at median useful life* 100000 h
    70
    Lumen maintenance at median useful life* 50000 h
    80
    Product Data
    Numerator - Quantity Per Pack
    1
    EAN/UPC - Case
    8710163349879
    Material number (12NC)
    911401837480
    Full product name
    WT120C G2 LED75S/840 PSU PCO L1500
    Full product code
    871016334981799
    Order code
    911401837480
    Order product name
    WT120C G2 LED75S/840 PSU PCO L1500
    Numerator - Packs per outer box
    9
    Approval and Application
    Protection class IEC
    Safety class I
    CE mark
    CE mark
    Warranty period
    5 years
    EU RoHS compliant
    Yes
    Photobiological risk
    Photobiological risk group 0 @200mm to EN62778
    Ingress protection code
    IP65  [Dust penetration-protected, jet-proof]
    Mech. impact protection code
    IK08  [5 J vandal-protected]
    Sustainability rating
    -
    Flammability mark
    For mounting on easily flammable surfaces
    ENEC mark
    ENEC mark
    Glow-wire test
    Temperature 850 °C, duration 30 s
    Controls and Dimming
    Control interface
    -
    Constant light output
    No
    Driver/power unit/transformer
    Power supply unit (On/Off)
    Dimmable
    No
    General Information
    Feed-through wiring
    Simple Connection and removable cover available for feed-through wiring 1-phase (internal wiring is not included)
    Driver included
    Yes
    Number of gear units
    1 unit
    Service tag
    Yes
    Light source replaceable
    No
    Remarks
    *-Per Lighting Europe guidance paper “Evaluating performance of LED based luminaires - January 2018”: statistically there is no relevant difference in lumen maintenance between B50 and for example B10. Therefore, the median useful life (B50) value also represents the B10 value.
    Value ladder
    Performance
    Lighting Technology
    LED
    Mechanical and Housing
    Reflector material
    Steel
    Overall width
    80 mm
    Fixation material
    Stainless steel
    Optical cover/lens material
    Polycarbonate
    Optic material
    Polycarbonate
    Housing Color
    Gray
    Housing Material
    Polycarbonate
    Dimensions (Height x Width x Depth)
    76 x 80 x 1515 mm
    Overall length
    1,515 mm
    Optical cover/lens finish
    Opal
    Overall height
    76 mm
    Application Conditions
    Suitable for random switching
    Not applicable
    Maximum dim level
    Not applicable
    Performance ambient temperature Tq
    25 °C
    Initial Performance (IEC Compliant)
    Initial chromaticity
    (0.38,0.38)SDCM<=3
    Power consumption tolerance
    +/-10%
    Luminous flux tolerance
    +/-10%
    Temperature
    Ambient temperature range
    -20 to +40 °C
    Light Technical
    Correlated Color Temperature (Nom)
    4000 K
    Luminous Efficacy (rated) (Nom)
    131 lm/W
    Color rendering index (CRI)
    >80
    Optic type
    Very wide beam
    Light source color
    840 neutral white
    Unified glare rating CEN
    28
    Luminous Flux
    7,500 lumen
    Flickering value (PstLM)
    1
    Stroboscopic effect value (SVM)
    1.6
    Luminaire light beam spread
    135°
    Installation Diagrams
     840 neutral white - Power supply unit
    840 neutral white - Power supply unit
    Downloads
    Leaflets
    Visuals
    Brochures
    Software Plugins
    • IES IES File - WT120C G2 LED75S/840 PSU PCO L1500 IES 12.3 kB
