    • Next generation system ready intelligent batten

      BN308C LED40S-4000 L120 PSD WH
      BN308C LED40S-4000 L120 PSD WH

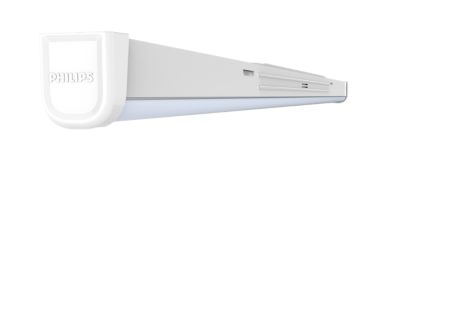

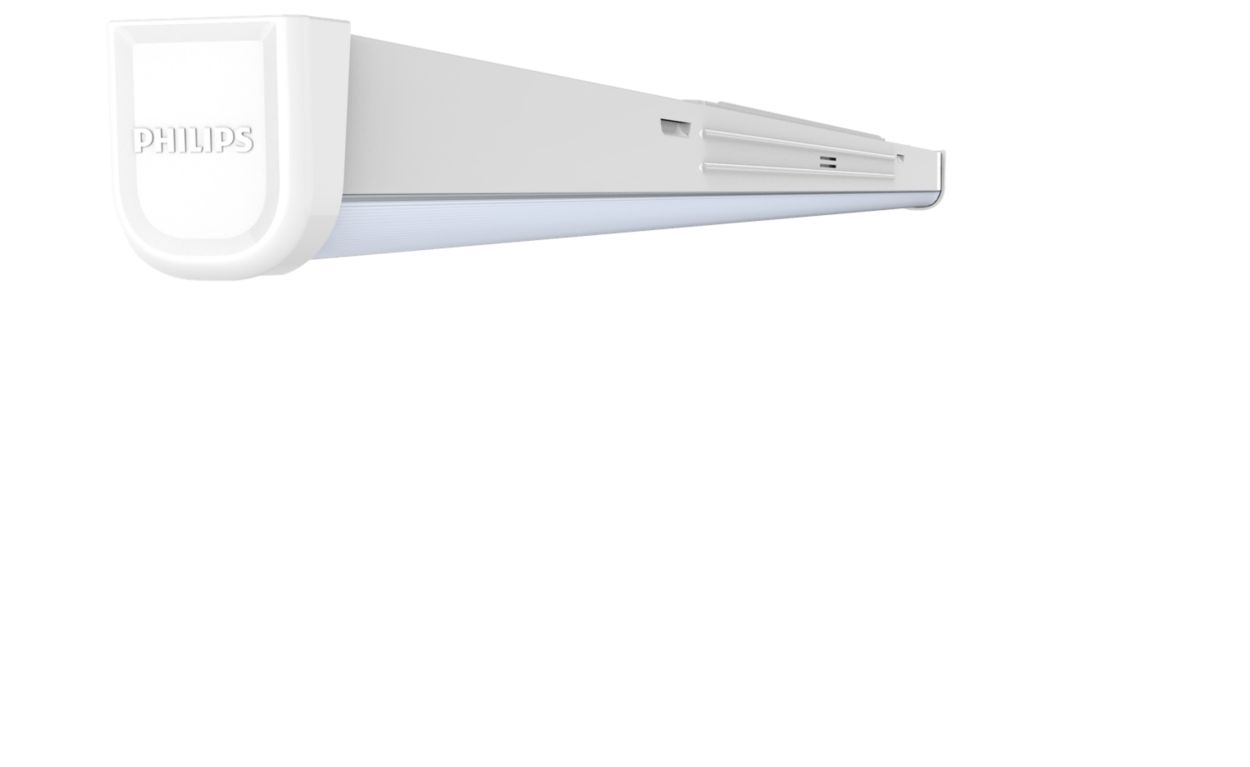

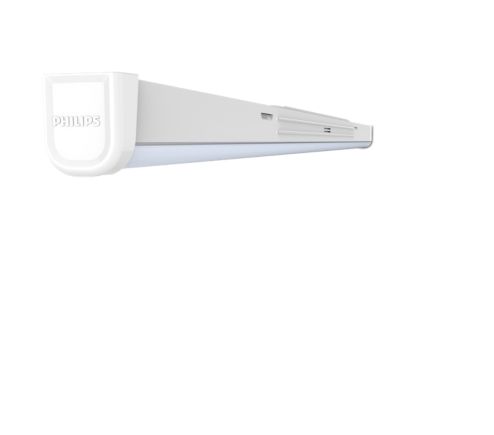

      Endura Next Batten

      BN308C LED40S-4000 L120 PSD WH

      Order code: 919515812671

    Specifications Show all

    General information
    Beam angle of light source
    120 °
    Light source color
    840 neutral white
    Driver included
    Yes
    Optic type
    120  [ Beam angle 120°]
    Optical cover/lens type
    Polycarbonate
    Luminaire light beam spread
    120°
    Control interface
    DALI
    Protection class IEC
    Safety class I (I)
    Flammability mark
    F  [ For mounting on normally flammable surfaces]
    Warranty period
    2 years
    Material
    Steel
    Light source engine type
    LED
    Operating and electrical
    Input Voltage
    140-270 V
    Input Frequency
    50 Hz
    Power Factor (Min)
    0.95
    Controls and dimming
    Dimmable
    Yes
    Mechanical and housing
    Housing Material
    Steel
    Optic material
    Polycarbonate
    Optical cover/lens material
    Polycarbonate
    Mounting device
    Surface & Suspended (Asymmetric/ Symmetric)
    Color
    White
    Approval and application
    Ingress protection code
    IP20  [ Finger-protected]
    Mech. impact protection code
    IK02  [ 0.2 J standard]
    Surge Protection (Common/Differential)
    Surge protection level until 4 kV
    Initial performance (IEC compliant)
    Initial luminous flux (system flux)
    4000 lm
    Initial LED luminaire efficacy
    120 lm/W
    Init. Corr. Color Temperature
    4000 K
    Init. Color Rendering Index
    >80
    Initial chromaticity
    <5
    Initial input power
    34 W
    Power consumption tolerance
    +/-10%
    Over time performance (IEC compliant)
    Median useful life L70B50
    50000 h
    Application conditions
    Ambient temperature range
    0 to +45 °C
    Product data
    Order product name
    BN308C LED40S-4000 L120 PSD WH
    Order code
    919515812671
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    6
    Material Nr. (12NC)
    919515812671
    Net Weight (Piece)
    1.400 kg
    Installation Diagrams
    BN308C
    BN308C
    Downloads
    Leaflets
    Visuals
    Brochures
    Software Plugins
    • IES BN308C LED40S-4000 L120 PSD IES 22.7 kB
