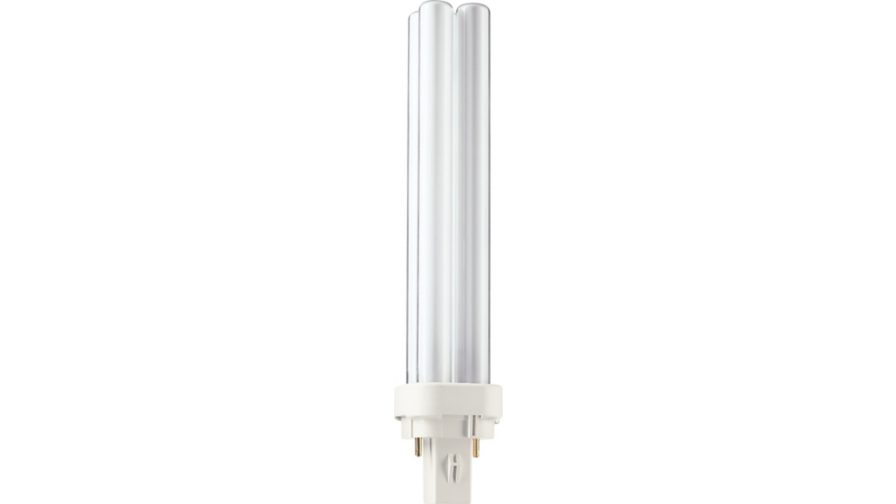

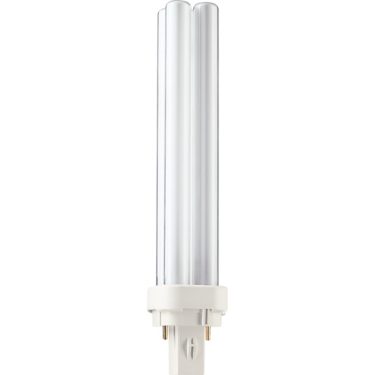

MASTER PL-C 26W/865/2P 1CT/5X10BOX

Specifications Show all

General information

Cap-Base	G24D-3  [ G24d-3]
Life To 10% Failures (Nom)	6500 h
Life to 50% Failures (Nom)	10000 h
LSF 2000 h Rated	99 %
LSF 4000 h Rated	98 %
LSF 6000 h Rated	92 %
LSF 8000 h Rated	78 %
Flux measurement reference	Sphere

Light technical

Color Code	865  [ CCT of 6500K]
Luminous Flux (Nom)	1740 lm
Luminous Flux (Rated) (Nom)	1740 lm
Color Designation	Cool Daylight
Chromaticity Coordinate X (Nom)	0.313
Chromaticity Coordinate Y (Nom)	0.337
Correlated Color Temperature (Nom)	6500 K
Luminous Efficacy (rated) (Nom)	66 lm/W
Color Rendering Index (Nom)	80
LLMF 2000 h Rated	90 %
LLMF 4000 h Rated	85 %
LLMF 6000 h Rated	81 %
LLMF 8000 h Rated	77 %

Operating and electrical

Power (Rated) (Nom)	26.5 W
Lamp Current (Nom)	0.335 A

Temperature

Design Temperature (Nom)

28 °C

Controls and dimming

Dimmable

No

Mechanical and housing

Cap-Base Information

2P

Approval and application

Energy Efficiency Class	G
Mercury (Hg) Content (Max)	1.4 mg
Mercury (Hg) Content (Nom)	1.4 mg
Energy Consumption kWh/1000 h	27 kWh
EPREL Registration Number	423289

Product data

Full product code	871150063531070
Order product name	MASTER PL-C 26W/865/2P 1CT/5X10BOX
EAN/UPC - Product	8711500635310
Order code	927906186540
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	50
Material Nr. (12NC)	927906186540
Copy Net Weight (Piece)	64.300 g
ILCOS Code	FSQ-26/65/1B-I-G24d=3
