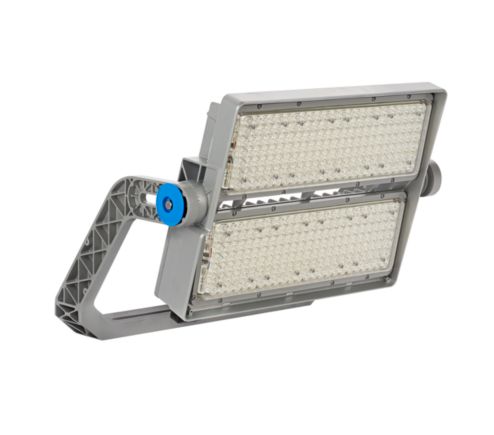

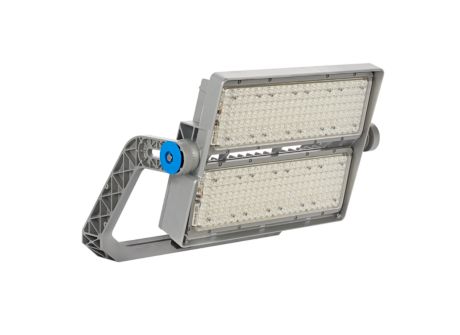

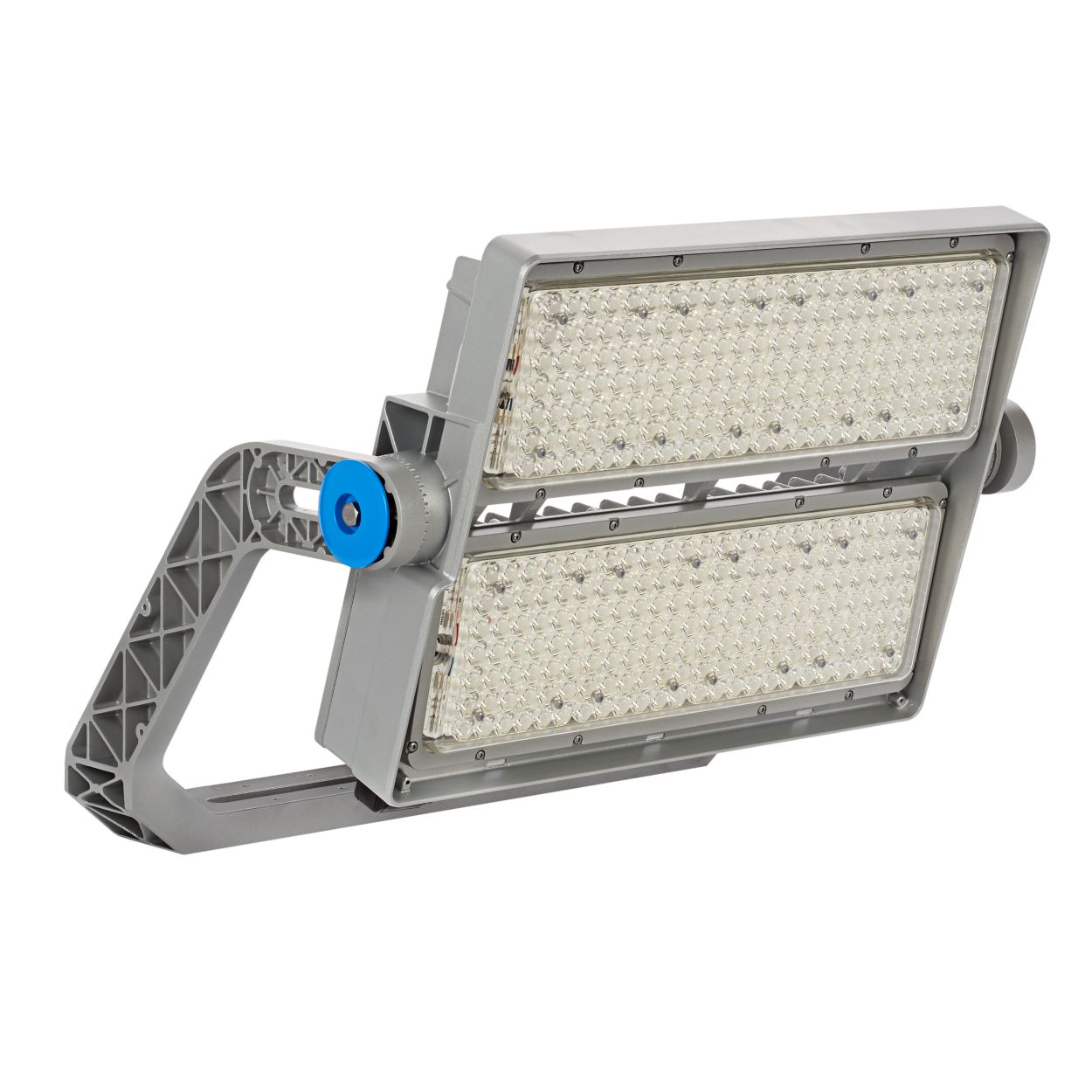

BVP418 C LED990/957 890W S8 BV

Specifications Show all

Operating and Electrical

Input Frequency	50 to 60 Hz
Power Factor (Fraction)	0.9
Input Voltage	220-400 V
Power Consumption	890 W
Cable	-
Connection	Push-in connector 5-pole
Line Frequency	50 to 60 Hz

Product Data

Numerator - Quantity Per Pack	1
Full product name	BVP418 C LED990/957 890W S8 BV
Material number (12NC)	911401614907
Order product name	BVP418 C LED990/957 890W S8 BV
Numerator - Packs per outer box	1
Order code	911401614907

Approval and Application

Protection class IEC	Safety class I
CE mark	CE mark
Ingress protection code	IP66  [Dust penetration-protected, jet-proof]
Mech. impact protection code	IK08  [5 J vandal-protected]

Controls and Dimming

Control interface	Dynamix DMX
Dimmable	Yes

Mechanical and Housing

Overall width	695 mm
Optical cover/lens material	Polycarbonate
Housing Color	Aluminum and RAL (to be defined)
Housing Material	Aluminum die cast
Dimensions (Height x Width x Depth)	434 x 695 x 538 mm
Overall length	538 mm
Overall height	434 mm

General Information

Lighting Technology	LED
Driver included	Yes

Initial Performance (IEC Compliant)

Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-7%

Temperature

Ambient temperature range

-40 to +45 °C

Light Technical

Correlated Color Temperature (Nom)	5700 K
Luminous Efficacy (rated) (Nom)	110 lm/W
Color rendering index (CRI)	>85
Optical cover/lens type	Polycarbonate bowl/cover clear
Light source color	957 cool white
Luminous Flux	99,000 lumen
