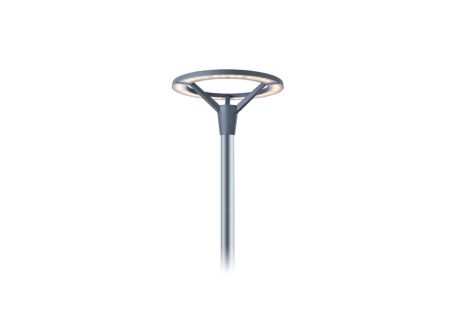

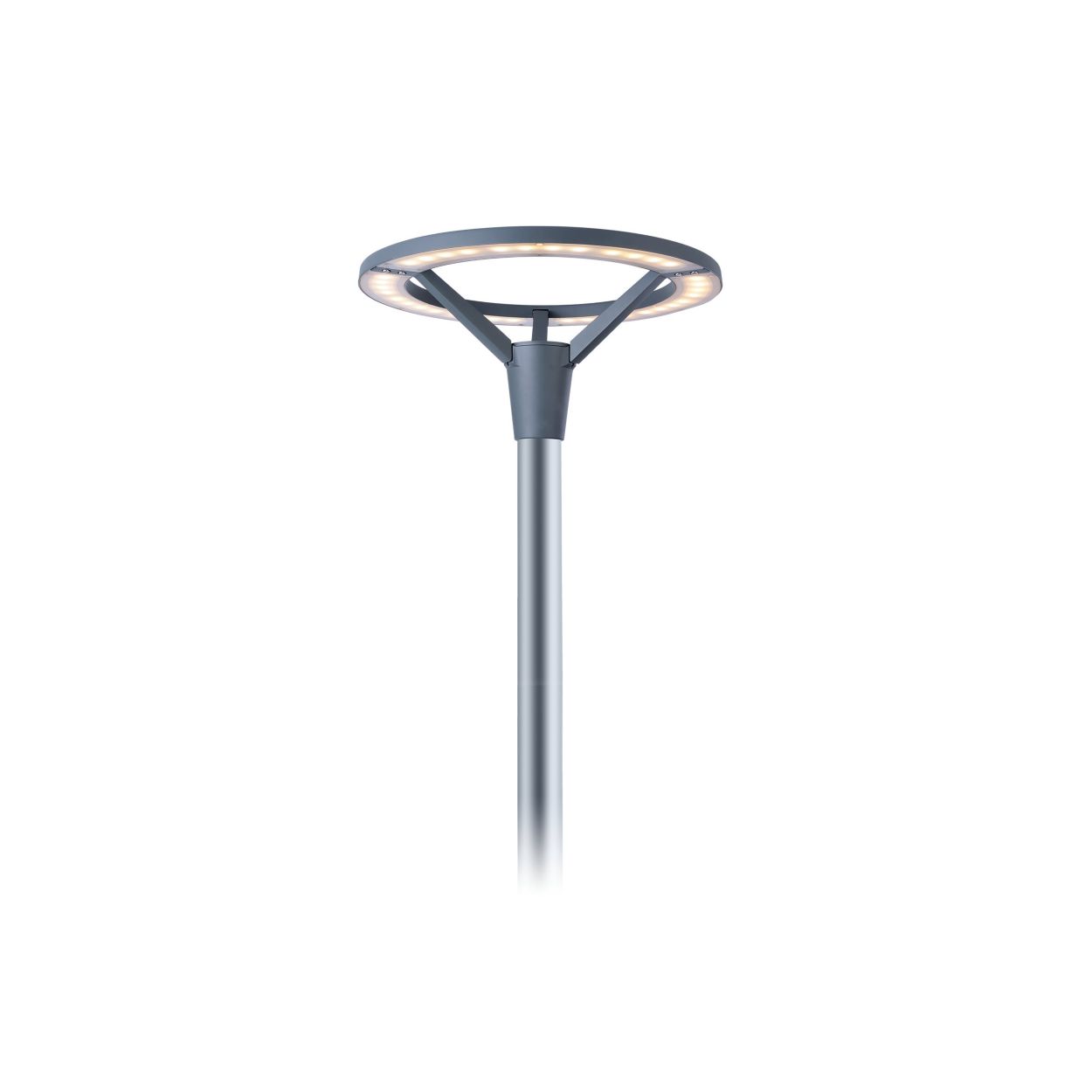

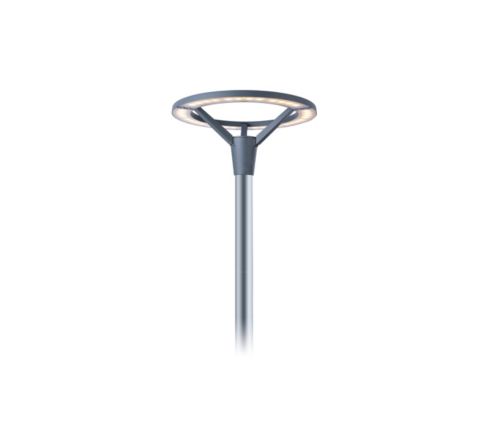

BGP161 LED2500/NW 12V SD 4M 7043

Specifications Show all

General information

Driver included	No
Optical cover/lens type	UV stabilized Polycarbonate cover
CE mark	CE mark
Warranty period	3 years
EU RoHS compliant	Yes

Operating and electrical

Input Voltage	24 V
Input Frequency	0 Hz
Cable connection kit	Included

Controls and dimming

Dimmable	Yes
Configurability	Configurable

Mechanical and housing

Overall length	578 mm
Overall width	578 mm
Overall height	265 mm
Color	RAL 7043

Approval and application

Ingress protection code	IP65  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK07  [ 2 J reinforced]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	2500 lm
Init. Corr. Color Temperature	4000 K
Init. Color Rendering Index	>70

Over time performance (IEC compliant)

Median useful life L70B50

50000 h

Application conditions

Ambient temperature range	0 to +35 °C
Solar dimming profile	As per remote controller
Battery location	Inside UrbanSpark Pole

Product data

Full product code	911401821502
Order product name	BGP161 LED2500/NW 12V SD 4M 7043
Order code	911401821502
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	2
Material Nr. (12NC)	911401821502
Net Weight (Piece)	2.250 kg
