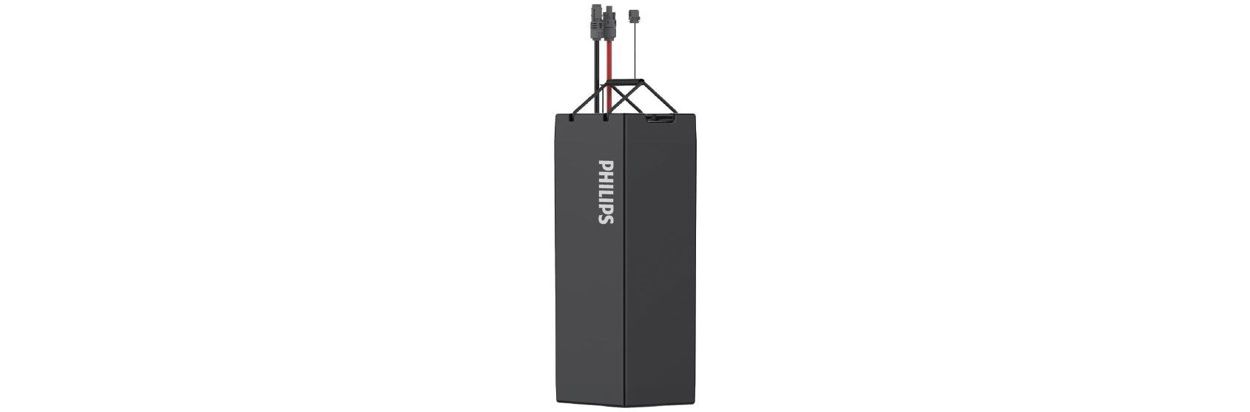

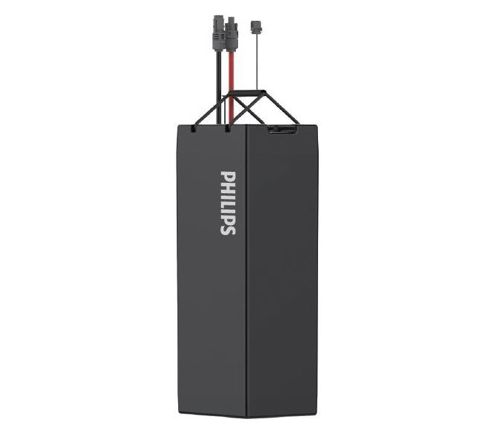

      ZJS601 100AH 12.8V Battery
      ZJS601 100AH 12.8V Battery

      ZJS601 100AH 12.8V Battery

      Order code: 911401800702

      Full Product Code: 000911401800702

      Downloads

      Leaflet
      Size:340.5 kB

      See all downloads

    Specifications Show all

    General Information
    CE mark
    CE mark
    Remarks
    Battery pack has BMS inside
    Operating and Electrical
    Battery type
    Lithium Ferro Phosphate
    Battery ampere hour
    100 Ah
    Battery voltage
    12.8 V
    Battery charging & discharging cycles
    2000
    Mechanical and Housing
    Overall length
    120 mm
    Overall width
    146 mm
    Overall height
    470 mm
    Approval and Application
    Ingress protection code
    IP68  [ Dust penetration-protected, pressure watertight]
    Application Conditions
    Ambient temperature range
    0 to +35 °C
    Ambient temperature range for charging
    0 to +45 °C
    Ambient temperature range for discharging (when light is on)
    -20 to +60 °C
    Product Data
    Full product code
    000911401800702
    Order product name
    ZJS601 100AH 12.8V Battery
    Order code
    911401800702
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    1
    Material Nr. (12NC)
    911401800702
    Net Weight (Piece)
    12.200 kg
    Installation Diagrams
    Dimensional Drawing
    Dimensional Drawing
