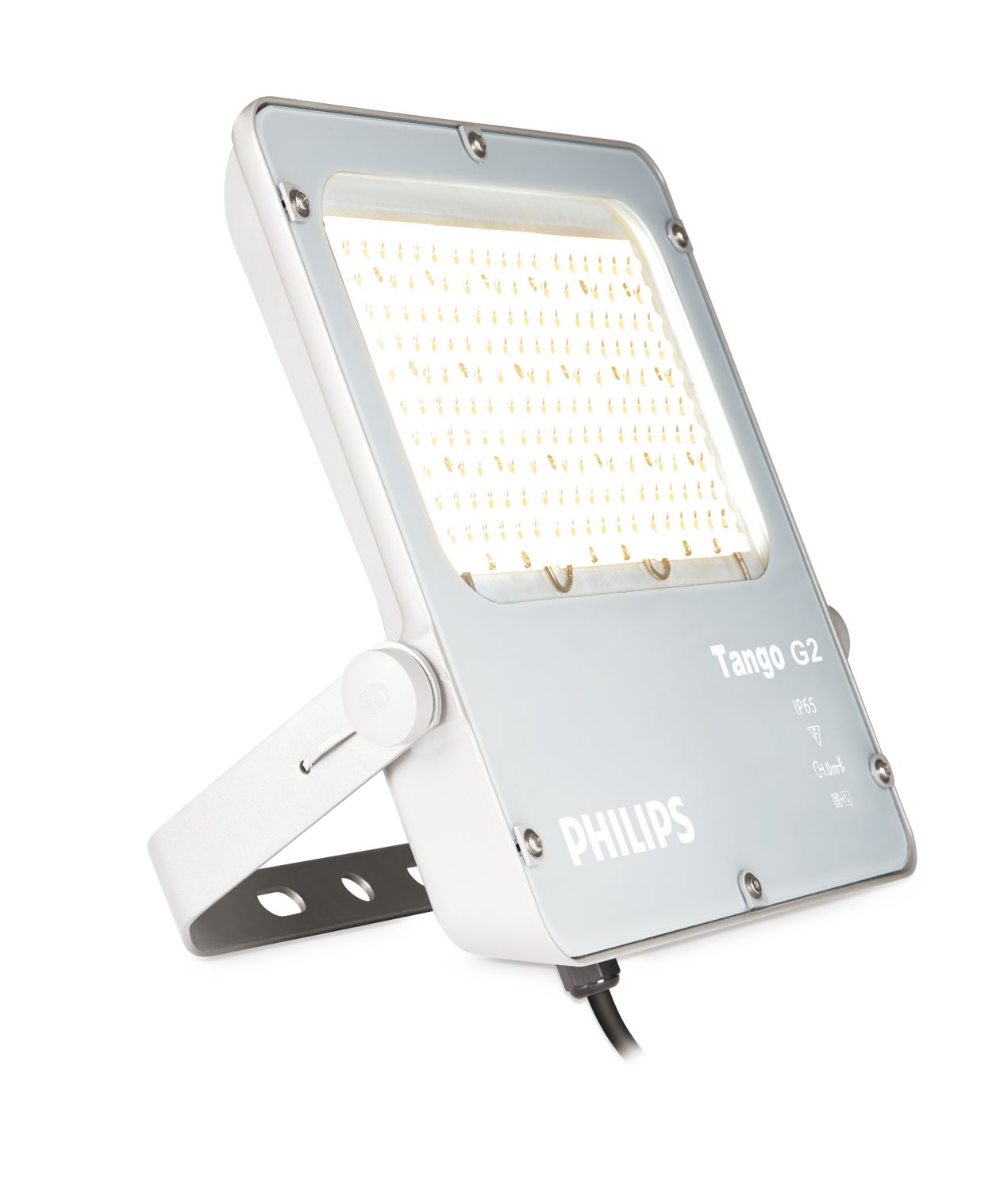

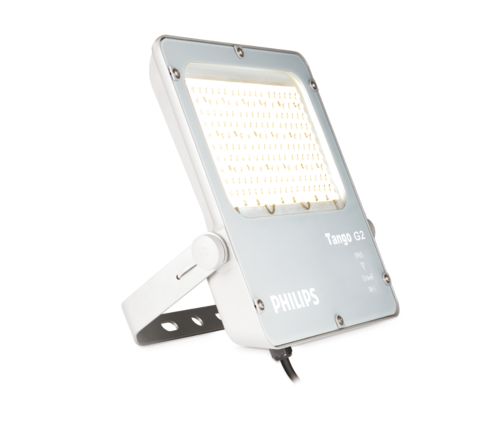

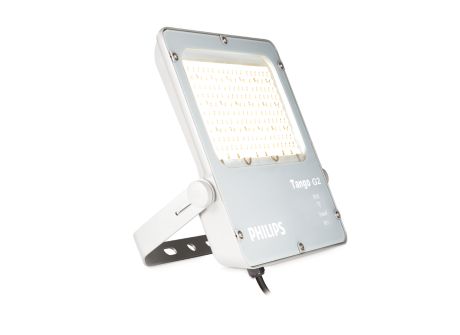

BVP281 LED50/CW 40W S-WB SD 12.5m

Specifications Show all

Operating and Electrical

Input Frequency	0 Hz
Cable connection kit	Included
Input Voltage	12 DC V
Battery voltage	12;12.8 V
Battery type	Multiple
Cable	12.5 m cable with molex connector
Line Frequency	0 Hz

Over Time Performance (IEC Compliant)

Median useful life L70B50

50,000 hour(s)

Approval and Application

CE mark	CE mark
Warranty period	3 years
EU RoHS compliant	Yes
Ingress protection code	IP65  [Dust penetration-protected, jet-proof]
Mech. impact protection code	IK07  [2 J reinforced]

Product Data

Numerator - Quantity Per Pack	1
Full product code	911401820502
Full product name	BVP281 LED50/CW 40W S-WB SD 12.5m
Material number (12NC)	911401820502
Numerator - Packs per outer box	1
Order product name	BVP281 LED50/CW 40W S-WB SD 12.5m
Order code	911401820502

Controls and Dimming

Configurability	Configurable
Dimmable	Yes

General Information

Driver included

No

Mechanical and Housing

Overall width	60 mm
Housing Color	RAL 9007
Material	Aluminum
Dimensions (Height x Width x Depth)	360 x 60 x 370 mm
Overall length	370 mm
Overall height	360 mm

Application Conditions

Solar dimming profile	As per charge controler settings
Battery location	Outside Luminaire
Grid connection type	Offgrid and hybrid (separate Hybrid Charger)

Temperature

Ambient temperature range

-30 to +50 °C

Light Technical

Correlated Color Temperature (Nom)	5700 K
Luminous Efficacy (rated) (Nom)	125 lm/W
Color rendering index (CRI)	>70
Optical cover/lens type	Flat glass
Luminous Flux	5,000 lumen
