    • The most affordable solar street light

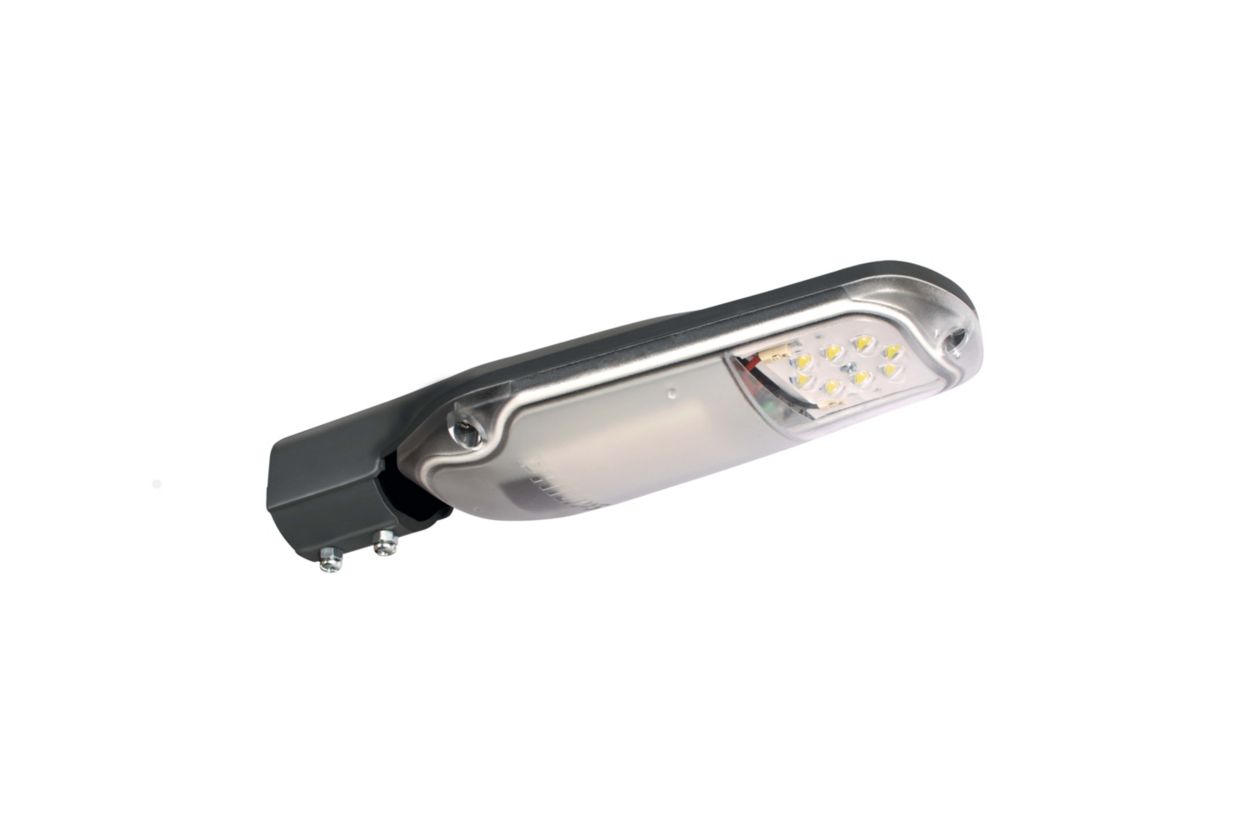

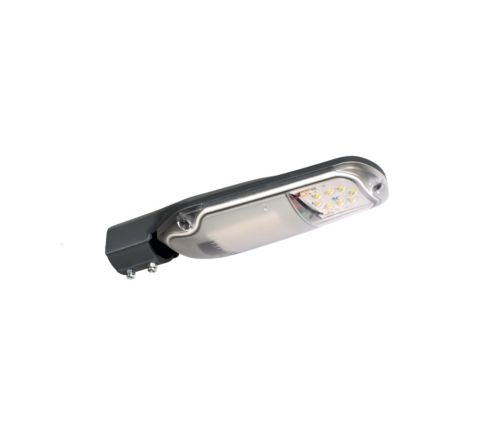

      BRP049 P 15 CW MR S2 LFP BLE Solar P4000
      BRP049 P 15 CW MR S2 LFP BLE Solar P4000
      Smart Bright Solar

      BRP049 P 15 CW MR S2 LFP BLE Solar P4000

      Order code: 919615811139

      Downloads

      Spec Sheet
      Size:368.5 kB

      See all downloads

    Specifications Show all

    General information
    Driver included
    Yes
    Optical cover/lens type
    Polycarbonate
    Cable
    Cord 0.5 m 4 core for battery and panel, without connectors and additional 1.0 m cable for solar panel included in the box
    CE mark
    CE mark
    Warranty period
    3 years
    Material
    Pressure die cast aluminum
    Remarks
    Compatible with Bluetooth App for configuration
    Operating and electrical
    Charge controller type
    MPPT
    Charge controller wattage
    12 W
    Cable connection kit
    Included
    Controls and dimming
    Dimmable
    Yes
    Configurability
    Configurable
    Mechanical and housing
    Overall length
    316 mm
    Overall width
    107 mm
    Overall height
    60 mm
    Approval and application
    Ingress protection code
    IP65  [ Dust penetration-protected, jet-proof]
    Mech. impact protection code
    IK08  [ 5 J vandal-protected]
    Initial performance (IEC compliant)
    Initial luminous flux (system flux)
    1500 lm
    Init. Corr. Color Temperature
    5700 K
    Init. Color Rendering Index
    >70
    Over time performance (IEC compliant)
    Median useful life L70B50
    50000 h
    Application conditions
    Ambient temperature range
    0 to +35 °C
    Solar dimming profile
    Configurable through mobile app,
    Grid connection type
    Off grid
    Battery location
    Outside Luminaire
    Product data
    Order product name
    BRP049 P 15 CW MR S2 LFP BLE Solar P4000
    Order code
    919615811139
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    10
    Material Nr. (12NC)
    919615811139
    Net Weight (Piece)
    0.700 kg
    Installation Diagrams
    Downloads
    Leaflets
    Visuals
    Software Plugins
    • IES BRP049 P 15 CW MR S2 LFP BLE Solar P4000 IES 107.7 kB
