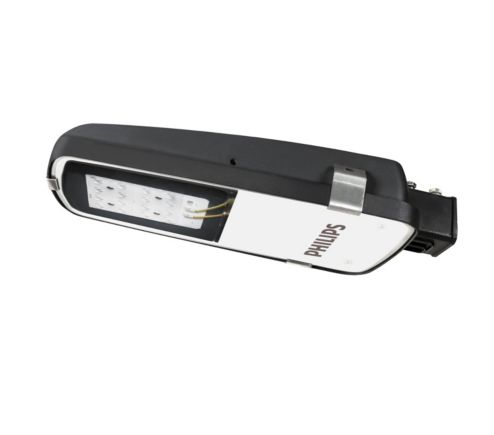

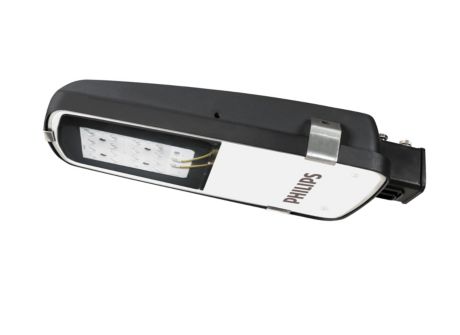

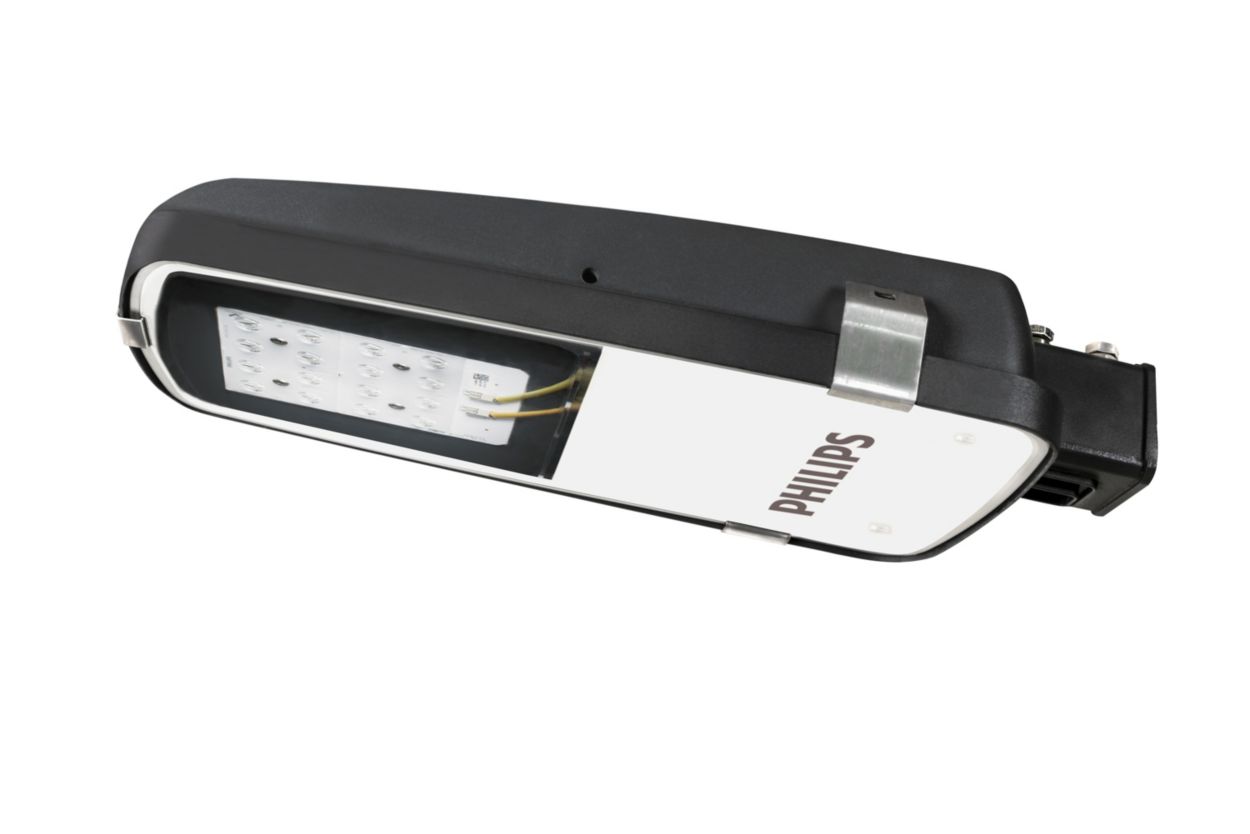

    • Configurable Solar Luminaire with health monitoring

      solarEquip.BRP4092445CWMRFGS124VPR
      solarEquip.BRP4092445CWMRFGS124VPR

      solarEquip.BRP4092445CWMRFGS124VPR

      Order code: 919515811299

      Downloads

      Leaflet
      Size:390.6 kB

      See all downloads

    Specifications Show all

    General Information
    Driver included
    Yes
    Optical cover/lens type
    FG  [ Flat glass]
    Control interface
    BLE
    Cable
    Cord 0.5 m 4 core for battery and panel, without connectors and additional 1.0 m cable for solar panel included in the box
    Warranty period
    3 years
    Material
    Pressure die cast aluminum
    Operating and Electrical
    Charge controller type
    MPPT
    Charge controller wattage
    45 W
    Cable connection kit
    Included
    Controls and Dimming
    Dimmable
    Yes
    Configurability
    Configurable
    Mechanical and Housing
    Overall length
    416 mm
    Overall width
    203 mm
    Overall height
    75 mm
    Approval and Application
    Ingress protection code
    IP66  [ Dust penetration-protected, jet-proof]
    Mech. impact protection code
    IK05  [ 0.7 J]
    Initial Performance (IEC Compliant)
    Init. Corr. Color Temperature
    5700 K
    Init. Color Rendering Index
    >70
    Over Time Performance (IEC Compliant)
    Median useful life L70B50
    50000 h
    Application Conditions
    Ambient temperature range
    0 to +35 °C
    Solar dimming profile
    Configurable through mobile app
    Grid connection type
    Hybrid
    Battery location
    Outside Luminaire
    Product Data
    Order product name
    solarEquip.BRP4092445CWMRFGS124VPR
    Order code
    919515811299
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    1
    Material Nr. (12NC)
    919515811299
    Net Weight (Piece)
    2.700 kg
