    • Combo charge controllers Gen 4.0

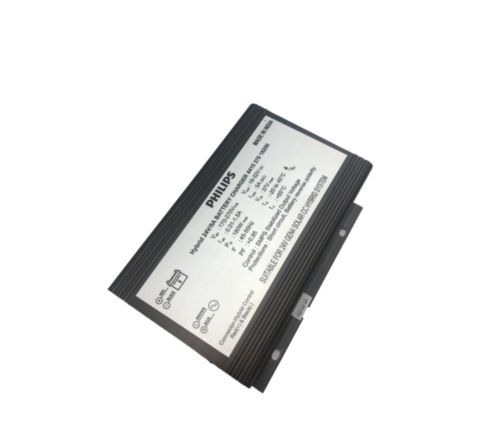

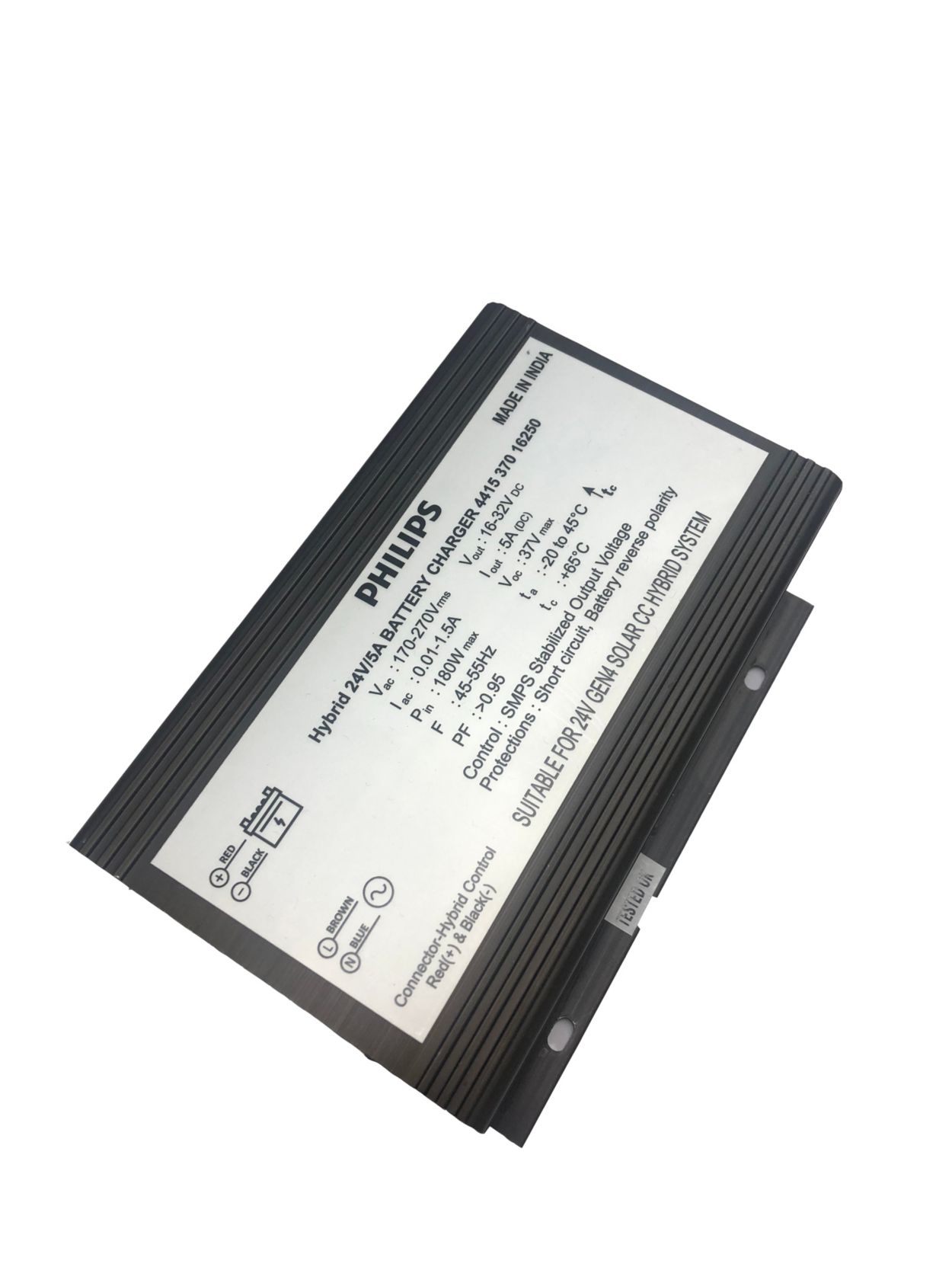

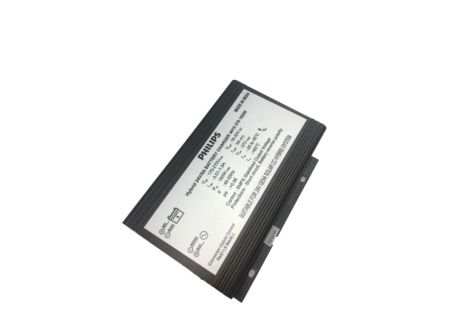

      ZJS402 HYC 150W 24V SOLAR
      ZJS402 HYC 150W 24V SOLAR
      ComboCC Gen 4.0

      ZJS402 HYC 150W 24V SOLAR

      Downloads

      Spec Sheet
      Size:356.9 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Input Frequency
    50 Hz
    Cable connection kit
    Excluded
    Charge controller type
    MPPT
    Input Voltage
    170 to 300 V
    Battery type
    Multiple
    Cable
    Connectors: battery, charge controller interface, AC Connection Cable
    Charge controller wattage
    180 W
    Line Frequency
    50 Hz
    Approval and Application
    Surge Protection (Common/Differential)
    Surge protection level until 4 kV Differential mode kV
    Warranty period
    2 years
    Ingress protection code
    IP65  [Dust penetration-protected, jet-proof]
    Product Data
    Numerator - Quantity Per Pack
    1
    EAN/UPC - Case
    8719514529090
    Full product name
    ZJS402 HYC 150W 24V SOLAR
    Full product code
    871951452905299
    Order product name
    ZJS402 HYC 150W 24V SOLAR
    Numerator - Packs per outer box
    10
    Material number (12NC)
    919415811131
    Order code
    919415811131
    Controls and Dimming
    Dimmable
    Yes
    Mechanical and Housing
    Overall width
    111 mm
    Dimensions (Height x Width x Depth)
    58 x 111 x 149 mm
    Overall length
    149 mm
    Overall height
    57.7 mm
    Application Conditions
    Grid connection type
    Hybrid
    Temperature
    Ambient temperature range
    -20 to +45 °C
    Light Technical
    Luminous Efficacy (rated) (Nom)
    170 lm/W
    Installation Diagrams
    ZJS401 HYC
    ZJS401 HYC
