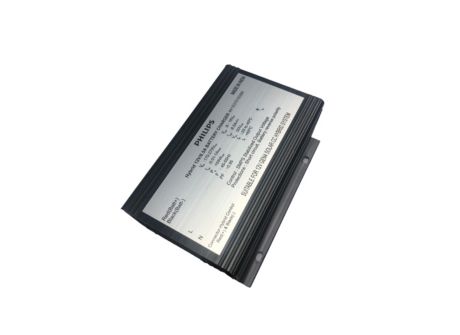

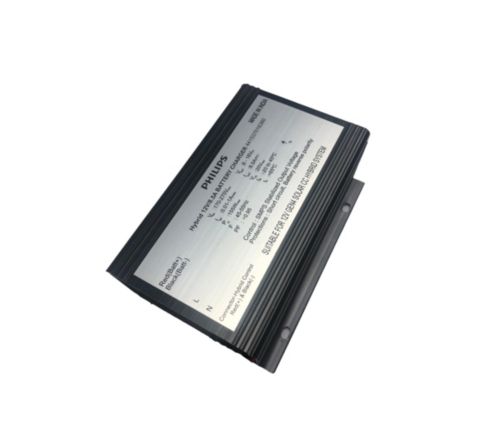

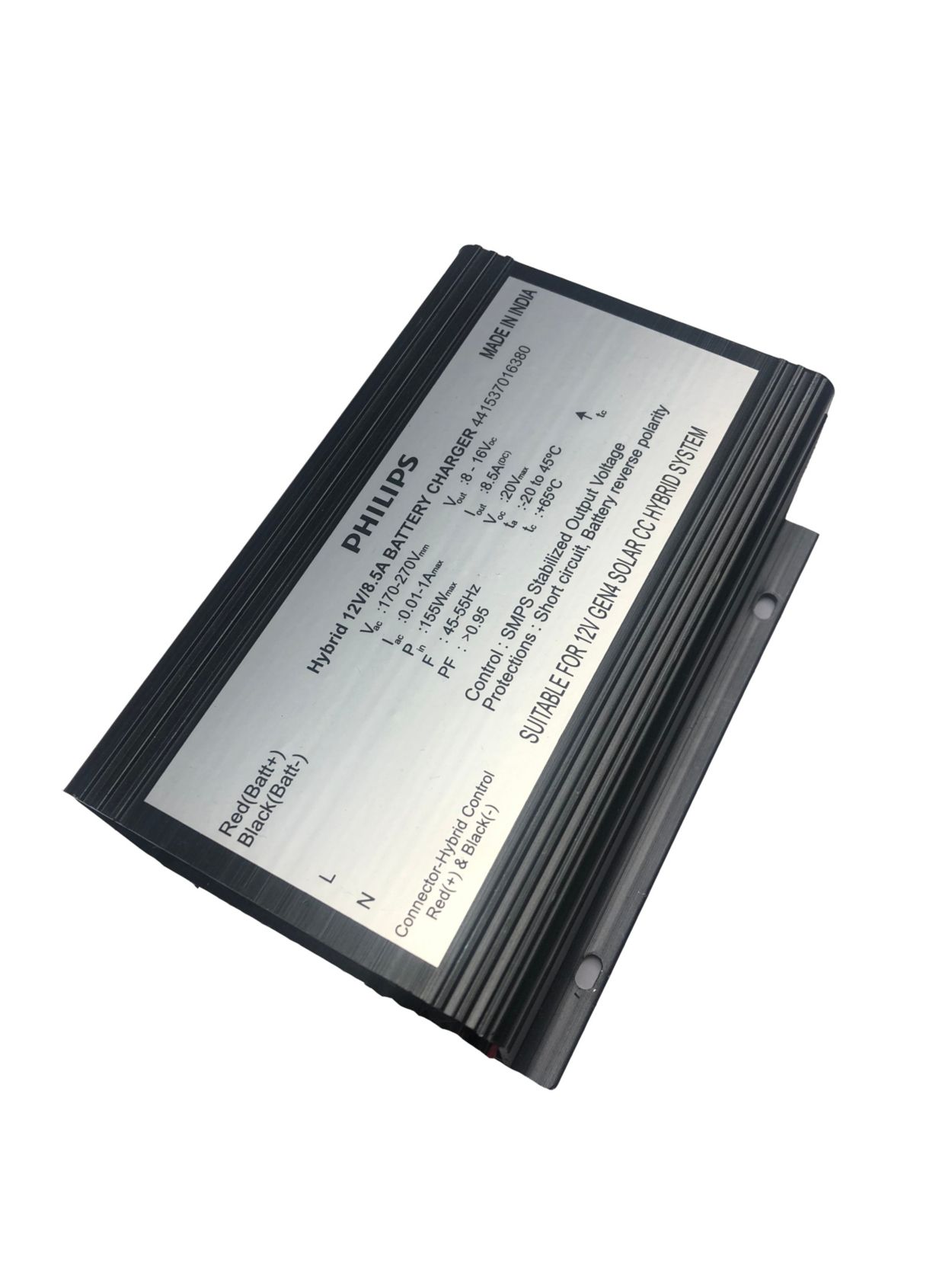

      ZJS401 HYC 150W 12V SOLAR
      ZJS401 HYC 150W 12V SOLAR
      ComboCC Gen 4.0

      ZJS401 HYC 150W 12V SOLAR

      Downloads

      Spec Sheet
      Size:358.2 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Input Frequency
    50 Hz
    Cable connection kit
    Excluded
    Charge controller type
    MPPT
    Input Voltage
    170 to 300 V
    Battery type
    Multiple
    Cable
    Connectors: battery, charge controller interface, AC Connection Cable
    Charge controller wattage
    140 W
    Line Frequency
    50 Hz
    Approval and Application
    Surge Protection (Common/Differential)
    Surge protection level until 4 kV Differential mode kV
    Warranty period
    2 years
    Ingress protection code
    IP65  [Dust penetration-protected, jet-proof]
    Product Data
    Numerator - Quantity Per Pack
    1
    EAN/UPC - Case
    8719514529106
    Full product name
    ZJS401 HYC 150W 12V SOLAR
    Full product code
    871951452906999
    Numerator - Packs per outer box
    10
    Order product name
    ZJS401 HYC 150W 12V SOLAR
    Material number (12NC)
    919415811128
    Order code
    919415811128
    Controls and Dimming
    Dimmable
    Yes
    Mechanical and Housing
    Overall width
    111 mm
    Dimensions (Height x Width x Depth)
    58 x 111 x 149 mm
    Overall length
    149 mm
    Overall height
    57.7 mm
    Application Conditions
    Grid connection type
    Hybrid
    Temperature
    Ambient temperature range
    -20 to +45 °C
    Light Technical
    Luminous Efficacy (rated) (Nom)
    170 lm/W
    Installation Diagrams
    ZJS401 HYC
    ZJS401 HYC
