    • Combo charge controllers Gen 4.0

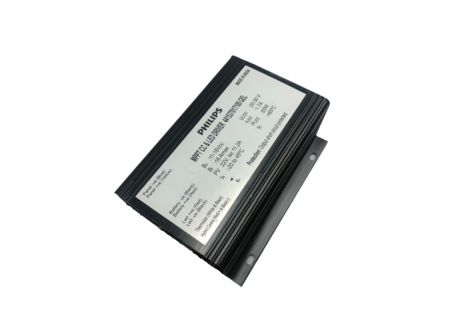

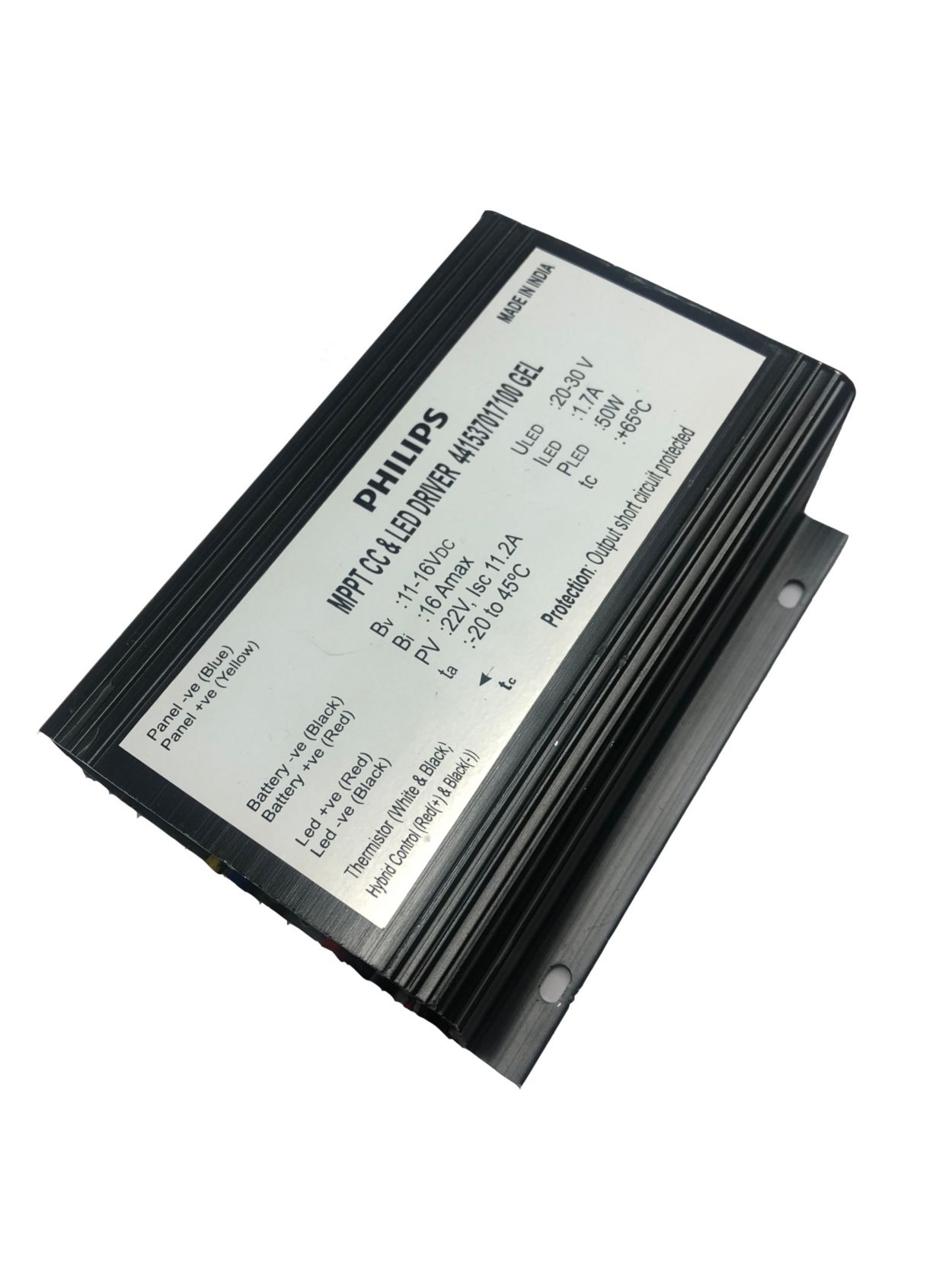

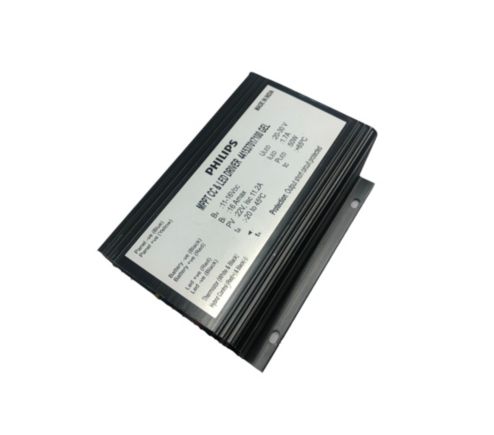

      ZJS401 CCC 200Wp 12V RS SOLAR
      ZJS401 CCC 200Wp 12V RS SOLAR
      ComboCC Gen 4.0

      ZJS401 CCC 200Wp 12V RS SOLAR

      Downloads

      Spec Sheet
      Size:369.5 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Cable connection kit
    Excluded
    Charge controller type
    MPPT
    Battery type
    Multiple
    Cable
    Connectors: Load, PV panel, battery, NTC, RMU, HCU interface
    Charge controller wattage
    50 W
    Approval and Application
    Surge Protection (Common/Differential)
    Surge protection at PV input upto 1KV of differential mode kV
    Warranty period
    2 years
    Ingress protection code
    IP65  [Dust penetration-protected, jet-proof]
    Product Data
    Numerator - Quantity Per Pack
    1
    Full product name
    ZJS401 CCC 200Wp 12V RS SOLAR
    Order product name
    ZJS401 CCC 200Wp 12V RS SOLAR
    Numerator - Packs per outer box
    10
    Material number (12NC)
    919415811127
    Order code
    919415811127
    Controls and Dimming
    Control interface
    RS-485
    Dimmable
    Yes
    General Information
    Driver included
    Yes
    Mechanical and Housing
    Overall width
    111 mm
    Dimensions (Height x Width x Depth)
    50 x 111 x 138 mm
    Overall length
    138 mm
    Overall height
    49.5 mm
    Application Conditions
    Solar dimming profile
    Configurable
    Grid connection type
    Offgrid and hybrid (separate Hybrid Charger)
    Temperature
    Ambient temperature range
    -20 to +45 °C
    Light Technical
    Luminous Efficacy (rated) (Nom)
    170 lm/W
    Installation Diagrams
    ZJS401 CCC
    ZJS401 CCC
