    • Combo charge controllers Gen 4.0

      ZJS403 CCC 600 12V/24V HYC 150W

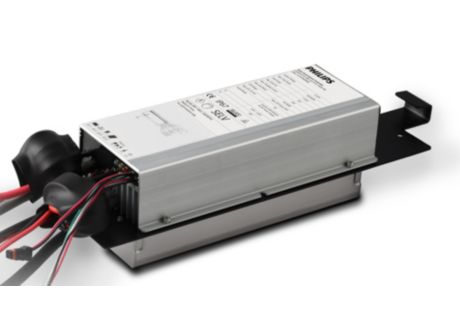

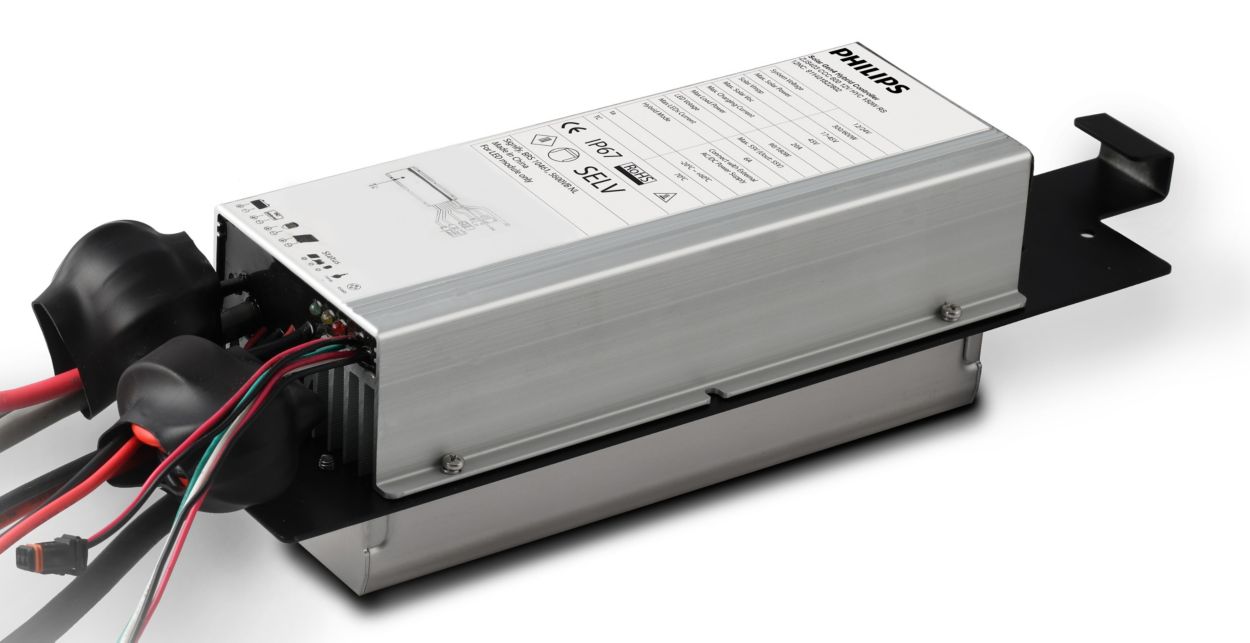

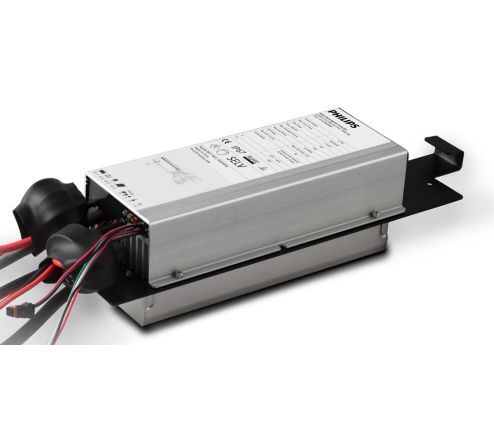

      ZJS403 CCC 600 12V/24V HYC 150W
      ComboCC Gen 4.0

      ZJS403 CCC 600 12V/24V HYC 150W

      Downloads

      Spec Sheet
      Size:439.0 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Input Frequency
    50 Hz
    Charge controller type
    MPPT
    Input Voltage
    220 V
    Battery type
    Multiple
    Charge controller wattage
    150 W
    Line Frequency
    50 Hz
    Approval and Application
    CE mark
    CE mark
    Warranty period
    3 years
    EU RoHS compliant
    Yes
    Ingress protection code
    IP67  [Dust penetration-protected, watertight]
    Product Data
    Numerator - Quantity Per Pack
    1
    Full product code
    911401816002
    Full product name
    ZJS403 CCC 600 12V/24V HYC 150W
    Order product name
    ZJS403 CCC 600 12V/24V HYC 150W
    Numerator - Packs per outer box
    4
    Material number (12NC)
    911401816002
    Order code
    911401816002
    Controls and Dimming
    Control interface
    IR remote
    Dimmable
    Yes
    General Information
    Driver included
    Yes
    Mechanical and Housing
    Overall width
    94 mm
    Dimensions (Height x Width x Depth)
    80 x 94 x 303 mm
    Overall length
    302.5 mm
    Overall height
    79.5 mm
    Application Conditions
    Grid connection type
    Hybrid
    Temperature
    Ambient temperature range
    -20 to +60 °C
    Light Technical
    Luminous Efficacy (rated) (Nom)
    160 lm/W
    Installation Diagrams
    Dimension Drawing (without table) - ZJS403 CCC 600 12V/24V HYC 150W
    Dimension Drawing (without table) - ZJS403 CCC 600 12V/24V HYC 150W
