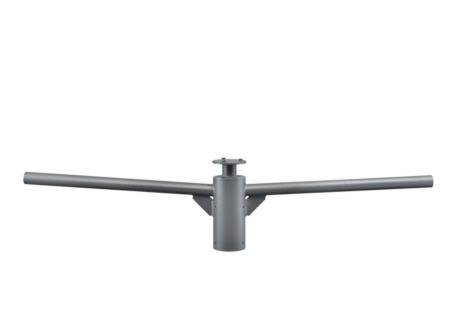

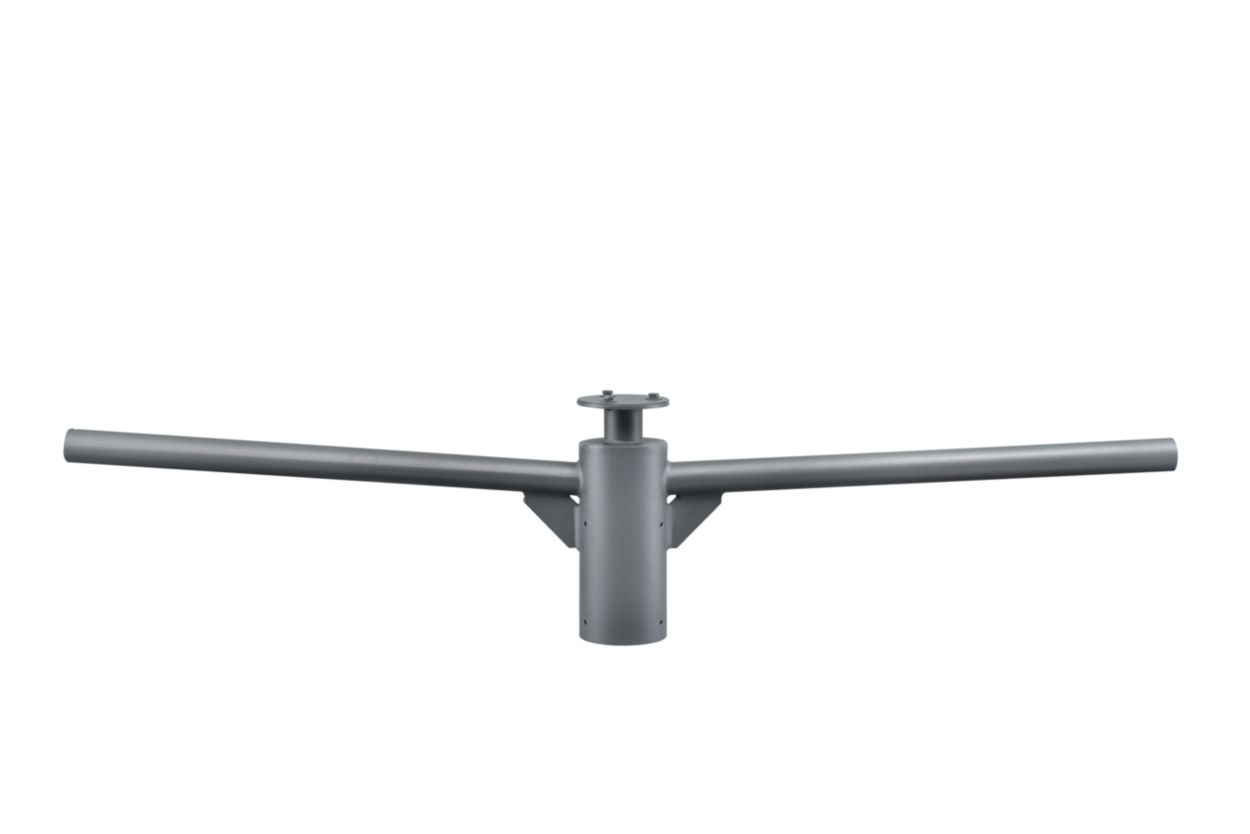

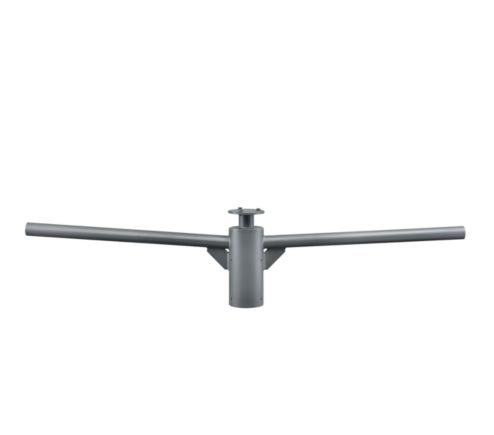

MPS Mid-Pole 10M Steel

Specifications Show all

Operating and Electrical

Input Frequency	50 or 60 Hz
Power Factor (Fraction)	0.9
Input Voltage	220-240 V
Cable	Cable 0.5 m without plug
Connection	Flying leads/wires
Power Consumption	70 W
Line Frequency	50 or 60 Hz

Approval and Application

Protection class IEC	Safety class I
CE mark	-
Ingress protection code	-
Mech. impact protection code	-

Product Data

Numerator - Quantity Per Pack	1
Material number (12NC)	911401701233
Full product name	MPS Mid-Pole 10M Steel
Order product name	MPS Mid-Pole 10M Steel
Numerator - Packs per outer box	1
Order code	911401701233

Controls and Dimming

Control interface	-
Dimmable	No

Mechanical and Housing

Overall width	419 mm
Optical cover/lens material	Polycarbonate
Housing Color	Gray
Housing Material	Aluminum die cast
Dimensions (Height x Width x Depth)	10602 x 419 x 265 mm
Overall diameter	219 mm
Overall length	265 mm
Material	Steel
Overall height	10,602 mm

General Information

Accessory color	Traffic grey
Driver included	Yes

Initial Performance (IEC Compliant)

Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-40 to +50 °C

Light Technical

Correlated Color Temperature (Nom)	4000 K
Luminous Efficacy (rated) (Nom)	131.42857142857142 lm/W
Color rendering index (CRI)	>70
Light source color	740 neutral white
Optical cover/lens type	Polycarbonate bowl/cover
Luminous Flux	9,200 lumen
