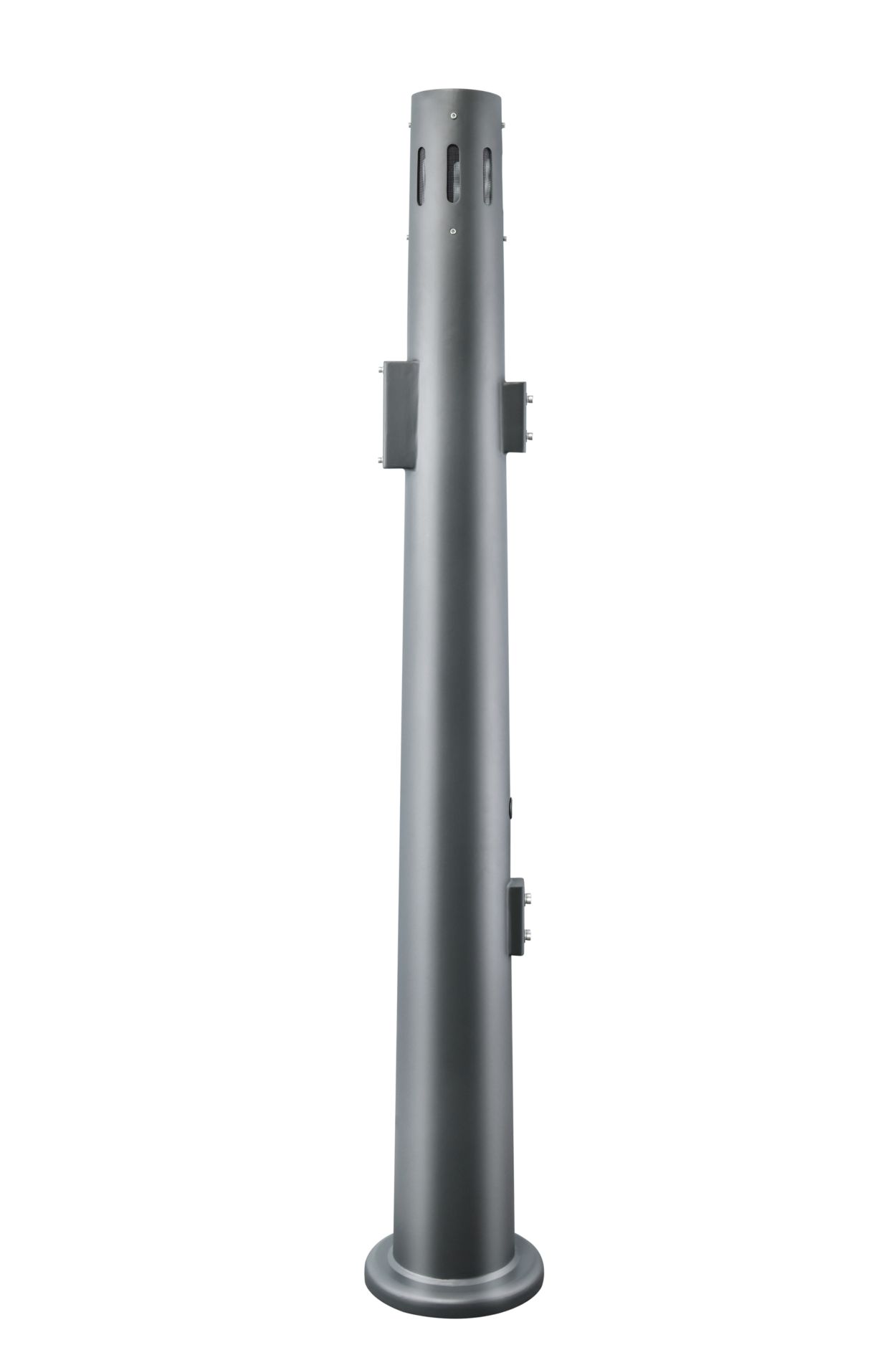

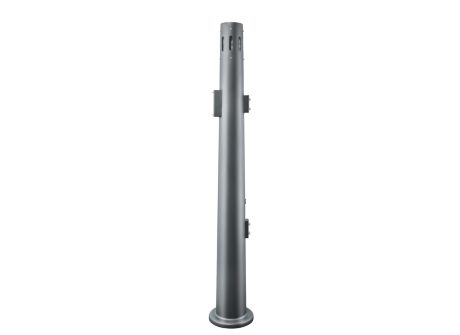

MPS Mid-Pole 2M Steel

Specifications Show all

Operating and Electrical

Input Frequency	50 or 60 Hz
Power Factor (Fraction)	0.9
Input Voltage	220-240 V
Cable	Cable 0.5 m without plug
Connection	Flying leads/wires
Power Consumption	50 W
Line Frequency	50 or 60 Hz

Product Data

Numerator - Quantity Per Pack	1
Material number (12NC)	911401701213
Full product name	MPS Mid-Pole 2M Steel
Numerator - Packs per outer box	1
Order product name	MPS Mid-Pole 2M Steel
Order code	911401701213

Approval and Application

Protection class IEC	Safety class I
CE mark	-
Ingress protection code	-
Mech. impact protection code	-

Controls and Dimming

Control interface	-
Dimmable	No

General Information

Accessory color	Traffic grey
Driver included	Yes

Mechanical and Housing

Overall width	419 mm
Optical cover/lens material	Polycarbonate
Housing Color	Gray
Dimensions (Height x Width x Depth)	2102 x 419 x 265 mm
Housing Material	Aluminum die cast
Overall diameter	219 mm
Overall length	265 mm
Material	Steel
Overall height	2,102 mm

Initial Performance (IEC Compliant)

Power consumption tolerance	+/-10%
Luminous flux tolerance	+/-10%

Temperature

Ambient temperature range

-40 to +50 °C

Light Technical

Correlated Color Temperature (Nom)	4000 K
Color rendering index (CRI)	>70
Luminous Efficacy (rated) (Nom)	136 lm/W
Optical cover/lens type	Polycarbonate bowl/cover
Light source color	740 neutral white
Luminous Flux	6,800 lumen
