    • ColorBlast Powercore – vibrant, controllable color for interior and exterior architectural lighting

      BCP472 36xLED-HB/RGB 100-240V 10 WH
      BCP472 36xLED-HB/RGB 100-240V 10 WH

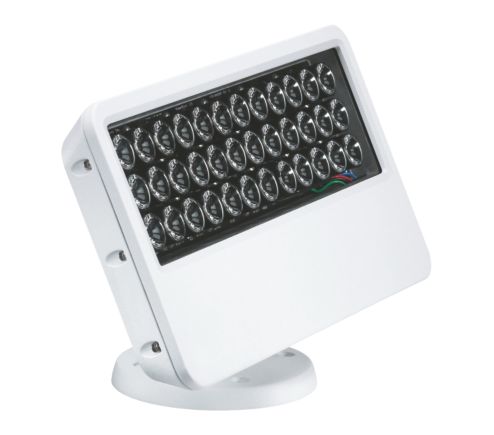

      ColorBlast Powercore BCP472

      BCP472 36xLED-HB/RGB 100-240V 10 WH

      Order code: 910503702321

      Full product code: 871794379501799

    Specifications Show all

    General Information
    Number of light sources
    36  [ 36 pcs]
    Lamp family code
    LED-HB  [ LED High Brightness]
    Beam angle of light source
    10 °
    Light source color
    Red, green and blue
    Light source replaceable
    Driver included
    Protection class IEC
    Safety class I (I)
    Glow-wire test
    650/5  [ Temperature 650 °C, duration 5 s]
    CE mark
    CE mark
    UL mark
    UL mark
    Lifetime to 50% luminous flux
    90000 h
    Lifetime to 70% luminous flux
    70000 h
    Optic type outdoor
    Narrow beam angle 10°
    Operating and Electrical
    Input Voltage
    100 to 240 V
    Input Frequency
    50 to 60 Hz
    Controls and Dimming
    Mechanical and Housing
    Approval and Application
    Ingress protection code
    IP66  [ Dust penetration-protected, jet-proof]
    Mech. impact protection code
    IK10  [ 20 J vandal-resistant]
    Initial Performance (IEC Compliant)
    Initial luminous flux (system flux)
    1418 lm
    Initial LED luminaire efficacy
    23.9 lm/W
    Initial input power
    50 W
    Application Conditions
    Ambient temperature range
    -20 to +50 °C
    Product Data
    Full product code
    Order product name
    BCP472 36xLED-HB/RGB 100-240V 10 WH
    EAN/UPC - Product
    Order code
    Numerator - Quantity Per Pack
    Numerator - Packs per outer box
    Material Nr. (12NC)
    Net Weight (Piece)
    3.000 kg
