Kvarnholmen tunnel – Philips lighting

Kvarnholmen tunnel,
Nacka in Sweden

In both the new tunnel and the access bridge of the Kvarnholmen junction in Sweden controllable LED luminaires were installed, providing a safe and sustainable road for drivers, cyclists and pedestrians.

Kvarnholmen tunnel safe and sustainable with TotalTunnel

The tunnel lighting
has an advanced

control system that adjusts the lighting according to outside conditions.

– Mikael Jansson - Responsible for street lighting in the Nacka municipality

Customer Challenge

The Nacka municipality’s aim was to build a secure, traffic-safe environment and have sustainable energy-efficient lighting with a very low environmental impact and also low maintenance costs.

The right lighting

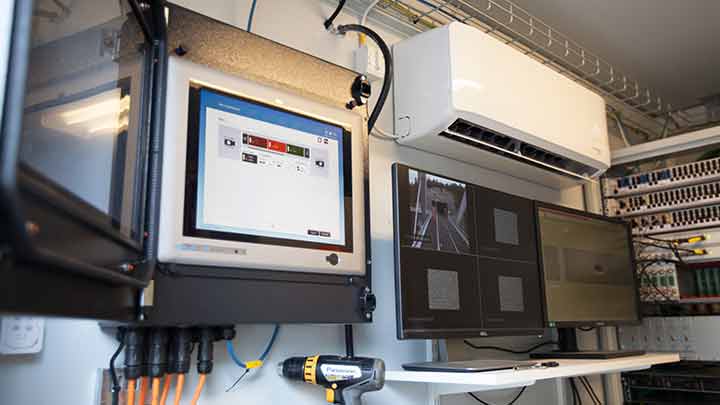

In the tunnel 115 FlowLine LED tunnel luminaires are installed, connected to the networked control system TunneLogic. In addition, Philips was also responsible for programming, commissioning and testing.

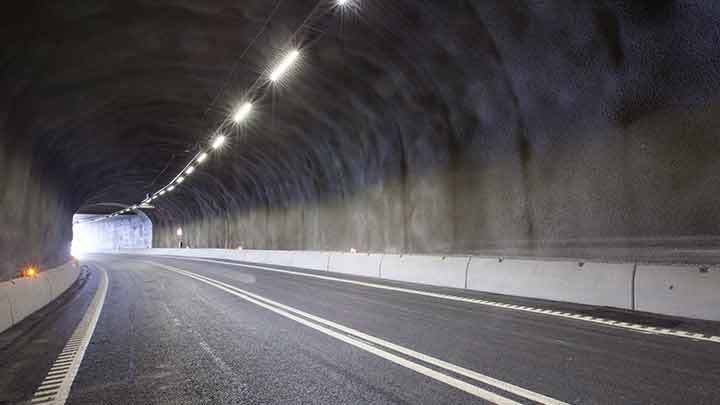

The linear LED lighting is mounted at the center of the tunnel roof and provide a continuous line of light. Two photometers are installed approx. 40 meters outside of the tunnel entrances, detecting daylight levels and adjusting the lighting in the tunnel entrances according to the outside conditions.

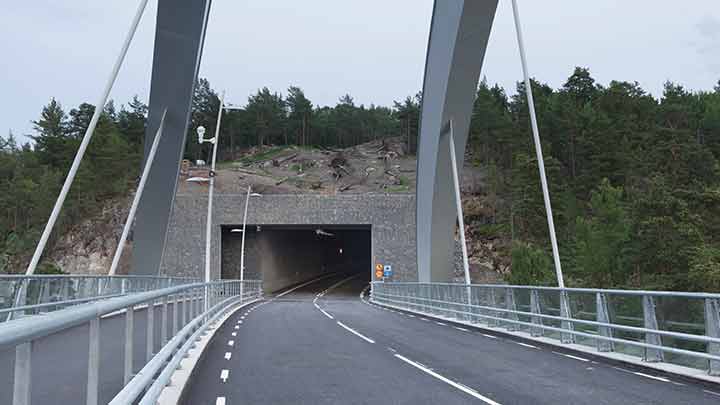

On the Kvarnholmen bride - which has two-way lanes for car and bus traffic, with a pedestrian pathway and cycle lane running alongside - MileWide2 LED luminaires have been installed on curved cone-shaped poles.

Both the Kvarnholmen tunnel and Kvarnholmen bridge now have sustainable energy-efficient lighting with long operating times and extremely low maintenance costs. The energy savings are 82%.

Download the case study

TunneLogic

Whatever your project – new build, refurbishment, retrofit of a short underpass, or a tunnel of many kilometers – Philips offers an end-to-end lighting control system.

More about the system

82% energy savings

The team

Nacka municipality

Client

ÅF Lighting

Project planning
