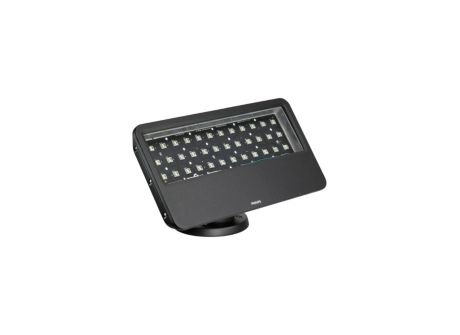

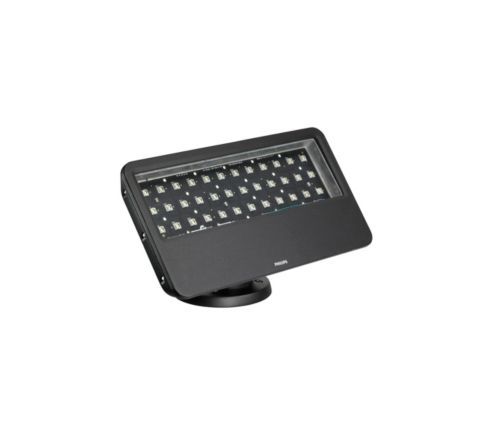

ColorBlast Powercore BCP472

BCP472 36xLED-HB/RGB 100-240V 86 BK

BCP472 36xLED-HB/RGB 100-240V 86 BK

  • ColorBlast Powercore – vibrant, controllable color for interior and exterior architectural lighting

    Product information

    Color Blast Powercore - RGB - Very wide beam angle 86° - Black

    Downloads

    Leaflet
    Size:178.4 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Number of light sources
36  [ 36 pcs]
Lamp family code
LED-HB  [ LED High Brightness]
Beam angle of light source
83 °
Light source color
RGB
Light source replaceable
No
Driver included
Yes
Protection class IEC
Safety class I (I)
Color
Black
Glow-wire test
650/5  [ Temperature 650 °C, duration 5 s]
CE mark
CE mark
UL mark
UL mark
Lifetime to 50% luminous flux
90000 h
Lifetime to 70% luminous flux
70000 h
Optic type outdoor
Very wide beam angle 86°
Product family code
BCP472  [ Color Blast Powercore]
Operating and Electrical
Input Voltage
100 to 240 V
Input Frequency
50 to 60 Hz
Controls and Dimming
Dimmable
Yes
Approval and Application
Ingress protection code
IP66  [ Dust penetration-protected, jet-proof]
Mech. impact protection code
IK10  [ 20 J vandal-resistant]
Initial Performance (IEC Compliant)
Initial luminous flux
1471 lm
Initial LED luminaire efficacy
23.9 lm/W
Initial input power
50 W
Application Conditions
Ambient temperature range
-20 to +50 °C
Product Data
Full product code
871794379536999
Order product name
BCP472 36xLED-HB/RGB 100-240V 86 BK
EAN/UPC - Product
8717943795369
Order code
910503702355
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
2
Material Nr. (12NC)
910503702355
Net Weight (Piece)
3.000 kg

Eco passport - Our environmental product specifications overview

Philips cares about the environment and society at large, and strongly supports eco-design of products.

Installation Diagrams
