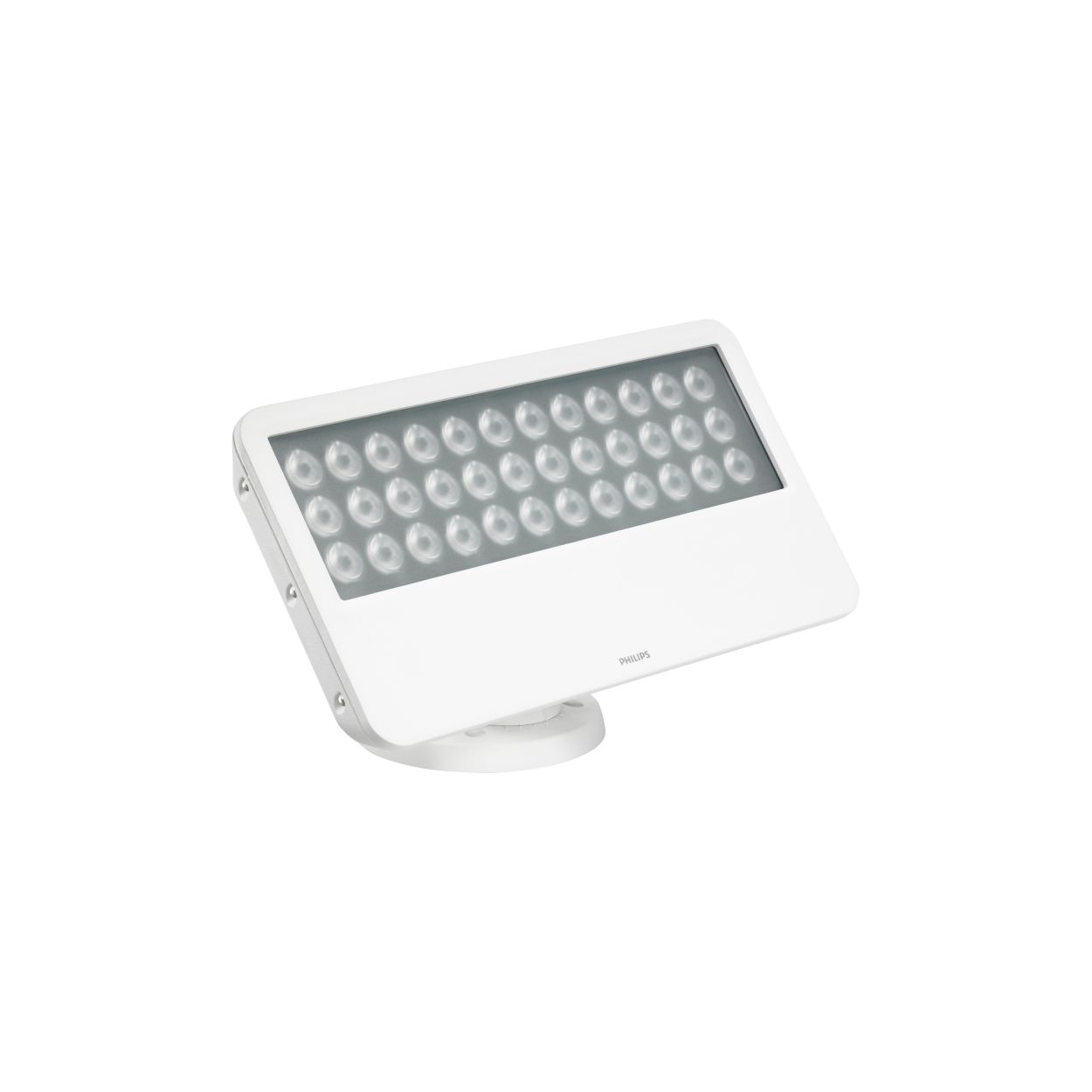

ColorBlast Powercore BCP472

BCP472 36xLED-HB/RGB 100-240V 23 WH

BCP472 36xLED-HB/RGB 100-240V 23 WH

  • ColorBlast Powercore – vibrant, controllable color for interior and exterior architectural lighting

    Product information

    Color Blast Powercore - RGB - Medium beam angle 23º - White

    Downloads

    Leaflet
    Size:134.3 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Number of light sources
36  [ 36 pcs]
Lamp family code
LED-HB  [ LED High Brightness]
Beam angle of light source
24 °
Light source color
RGB
Light source replaceable
No
Driver included
Yes
Protection class IEC
Safety class I (I)
Color
White
Glow-wire test
650/5  [ Temperature 650 °C, duration 5 s]
CE mark
CE mark
UL mark
UL mark
Lifetime to 50% luminous flux
90000 h
Lifetime to 70% luminous flux
70000 h
Optic type outdoor
Medium beam angle 23º
Product family code
BCP472  [ Color Blast Powercore]
Operating and Electrical
Input Voltage
100 to 240 V
Input Frequency
50 to 60 Hz
Controls and Dimming
Dimmable
Yes
Approval and Application
Ingress protection code
IP66  [ Dust penetration-protected, jet-proof]
Mech. impact protection code
IK10  [ 20 J vandal-resistant]
Initial Performance (IEC Compliant)
Initial luminous flux
1222 lm
Initial LED luminaire efficacy
23.9 lm/W
Initial input power
50 W
Application Conditions
Ambient temperature range
-20 to +50 °C
Product Data
Full product code
871794379502499
Order product name
BCP472 36xLED-HB/RGB 100-240V 23 WH
EAN/UPC - Product
8717943795024
Order code
910503702334
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
2
Material Nr. (12NC)
910503702334
Net Weight (Piece)
3.000 kg

Eco passport - Our environmental product specifications overview

Philips cares about the environment and society at large, and strongly supports eco-design of products.

Installation Diagrams
