    • Digital ignitors for maximum reliability

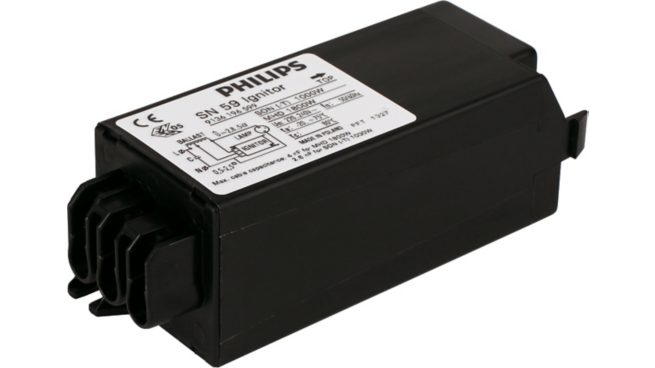

      SN 59 220-240V 50/60Hz
      SN 59 220-240V 50/60Hz

      SN 59 220-240V 50/60Hz

      Order code: 913619659966

      Full Product Code: 871150091557330

      Downloads

      Leaflet
      Size:1.0 MB

      See all downloads

    Specifications Show all

    General Information
    Application Code
    59
    Lamp Type
    SON/MHN
    Number of Lamps
    1 piece/unit
    Operating and Electrical
    Input Voltage
    220 to 240 V
    Input Frequency
    50 to 60 Hz
    Igniton Type
    Semi-Parallel
    Number of Ignition Pulses
    2
    Ignition Voltage (Max)
    5.00 kV
    Response Voltage
    196 V
    Mains Voltage Performance (AC)
    -8%-+6%
    Mains Voltage Safety (AC)
    -10%-+10%
    Power Losses (Nom)
    1.0 W
    Wiring
    Cable Capacity Wires Device to Lamp (Nom)
    4 nF
    Wire Striplength
    6.0 mm
    Ballast Contact Wire Cross Section
    0.70-2.50 mm²
    Connector Type
    Screw
    System characteristics
    Rated Ballast-Lamp Power
    1000/1800 W
    Temperature
    T-Ambient (Max)
    75 °C
    T-Ambient (Min)
    -20 °C
    T-Storage (Max)
    80 °C
    T-Storage (Min)
    -25 °C
    T-Case Maximum (Max)
    80 °C
    Mechanical and Housing
    Housing
    SNI-115
    Approval and Application
    Approval Marks
    CE marking
    ENEC certificate
    Product Data
    Full product code
    871150091557330
    Order product name
    SN 59 220-240V 50/60Hz
    EAN/UPC - Product
    8711500915573
    Order code
    913619659966
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    20
    Material Nr. (12NC)
    913619659966
    Net Weight (Piece)
    0.090 kg
    Installation Diagrams
    SN 59 220-240V 50/60Hz
    SN 59 220-240V 50/60Hz
