HID-Basic BHL for HPL/HPI (India)

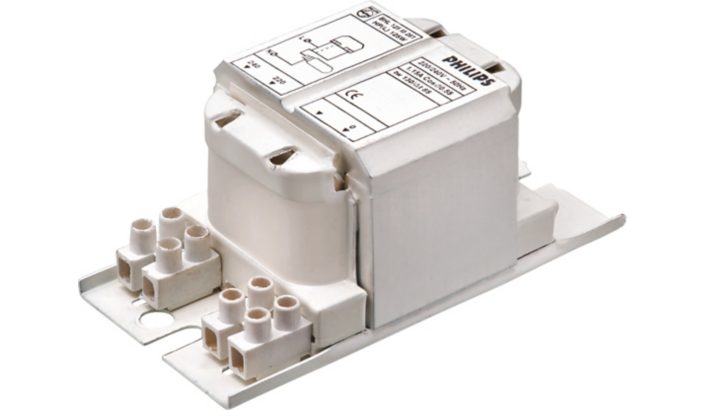

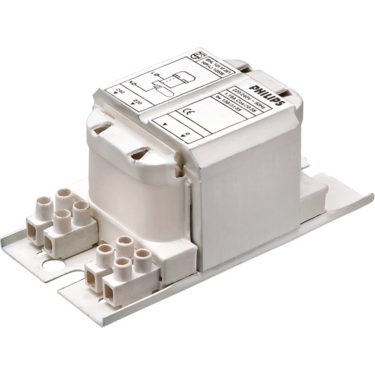

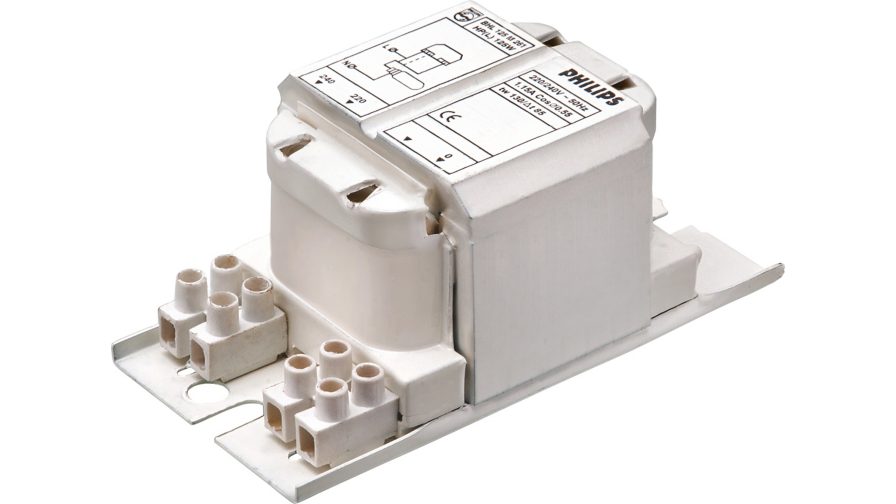

BHL 125 M261

  • HID basic BHL for HPL/HPI

    BHL 125 M261

    Product information

    Downloads

    Leaflet
    Size:779.1 kB

    See all downloads

Specifications Show all

General Information
Application Code
125 M261
Lamp Type
HPL
Number Of Lamps
1 piece/unit
Operating and Electrical
Input Voltage
220/240 V
Input Frequency
50 Hz
Mains Voltage Performance (AC)
240+6%--8%
Mains Voltage Safety (AC)
240-10%-+10%
Input Current With PF Correction
0.68 A
Input Current Without PF Correction
1.15 A
Power Factor With PF Compensation
0.85
Power Factor Without PF Compensation (Nom)
0.50
Power Losses (Nom)
16 W
Wiring
Connector Type
Screw
System characteristics
Rated Ballast-Lamp Power
125 W
Temperature
T-Winding (Max)
130 °C
Delta-T Normal Conditions
85 °C
Approval and Application
Energy Efficiency Index
Not specified
Product Data
Full product code
871150088443500
Order product name
BHL 125 M261
EAN/UPC - Product
8711500884435
Order code
913702251612
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
12
Material Nr. (12NC)
913702251612
Net Weight (Piece)
1.045 kg
Installation Diagrams
