  • EB-E electronic ballasts for TL-D lamps

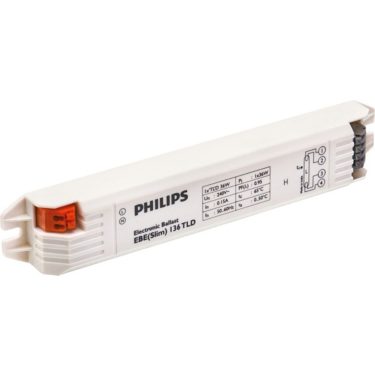

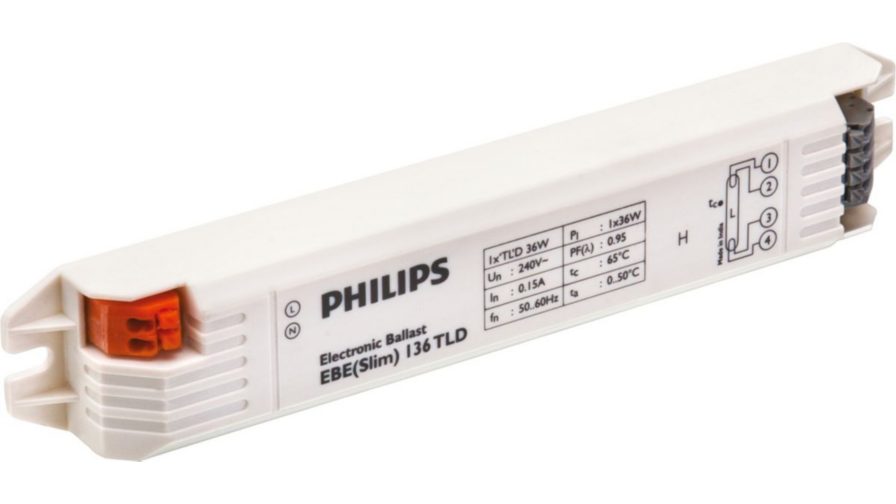

    EBE (Slim) 136 TLD 240V

    EBE (Slim) 136 TLD 240V

    Downloads

    Leaflet
    Size:589.5 kB

    See all downloads

Specifications Show all

General Information
Lamp Type
TL-D
Number Of Lamps
1 piece/unit
Automatic Restart
Yes
Operating and Electrical
Input Voltage
240 V
Input Frequency
50 to 60 Hz
Operating Frequency (Min)
42 kHz
Ignition Method
Instant Start
Crestfactor (Max)
1.8
Power Factor 100% Load (Nom)
0.95
Ignition Time (Max)
0.15 s
Mains Voltage Performance (AC)
221-254V
Mains Voltage Safety (AC)
216-264V
Constant Wattage Deviation
Not specified
Power Losses (Nom)
3.5 W
Wiring
Connector Type Input Terminals
WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Connector Type Output Terminals
WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
System characteristics
Rated Ballast-Lamp Power
36 W
Temperature
T-Ambient (Max)
50 °C
T-Ambient (Min)
0 °C
T-Storage (Max)
85 °C
T-Storage (Min)
-40 °C
T-Case Maximum (Max)
65 °C
T-Ignition (Min)
0 °C
Emergency Operation
Battery Voltage Lamp Ignition
198-254 V
Battery Voltage Lamp Operation
Not specified
Approval and Application
Energy Efficiency Index
Not specified
EMI 9 kHz ... 30 MHz
Not specified
EMI 30 MHz ... 1000 MHz
-
Safety Standard
-  [ Not specified]
Performance Standard
Not Specified
Harmonic Current Emission Standard
Not Specified
EMC Immunity Standard
IEC 61547
Vibration Standard
-
Bumps Standard
Not specified
Humidity Standard
EN 61347-2-3 clause 11
Temperature Marking
Not specified
Hum And Noise Level
Inaudible
Product Data
Full product code
871829111590800
Order product name
EBE (Slim) 136 TLD 240V
EAN/UPC - Product
8718291115908
Order code
913702242021
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
10
Material Nr. (12NC)
913702242021
Net Weight (Piece)
0.070 kg
